Radiator fan issue

Thread Tools

Old 12-16-2015, 12:17 PM
  #11
JK Enthusiast
Thread Starter

VancouverRubi's Avatar

Join Date: Jan 2013
Location: Vancouver, Canada
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts
Default
Does anyone have a picture of the fan relay and where I can find it? I'm having a hard time locating it
VancouverRubi is offline
Reply Like
Old 12-16-2015, 01:18 PM
  #12
JK Jedi Master
FJOTM Winner


Mark Doiron's Avatar

Join Date: Mar 2007
Location: Midwest City, OK
Posts: 14,790
Received 362 Likes on 270 Posts
Default
Originally Posted by VancouverRubi
Does anyone have a picture of the fan relay and where I can find it? I'm having a hard time locating it

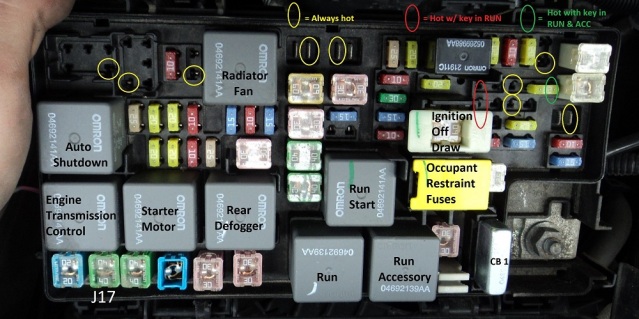

I keep this pic of the TIPM on my phone. See if it helps. I think Ronjenx put it together.



Click image for larger version Name: Fuse Box Layout 2.jpg Views: 477 Size: 100.0 KB ID: 632378
Mark Doiron is offline
Reply Like
Old 12-17-2015, 05:16 PM
  #13
JK Enthusiast

JRJKUS's Avatar

Join Date: Jul 2014
Location: Chicago
Posts: 173
Likes: 0
Received 0 Likes on 0 Posts
Default
Good pick to have. What year is that from?

Sent from my iPad using JK-Forum
JRJKUS is offline
Reply Like
Old 12-18-2015, 12:48 AM
  #14
JK Jedi Master
FJOTM Winner


Mark Doiron's Avatar

Join Date: Mar 2007
Location: Midwest City, OK
Posts: 14,790
Received 362 Likes on 270 Posts
Default
Originally Posted by JRJKUS
Good pick to have. What year is that from?

Sent from my iPad using JK-Forum
If I'm correct about Ron putting this picture together, and if I'm correctly remembering, he had a 2007 TIPM that he did the analysis on. He does own a 2008 JK. Maybe he'll chime in.
Mark Doiron is offline
Reply Like
Old 12-18-2015, 04:22 AM
  #15
JK Jedi Master

ronjenx's Avatar

Join Date: Feb 2008
Location: Maine
Posts: 12,880
Likes: 0
Received 171 Likes on 146 Posts
Default
Originally Posted by Mark Doiron
If I'm correct about Ron putting this picture together, and if I'm correctly remembering, he had a 2007 TIPM that he did the analysis on. He does own a 2008 JK. Maybe he'll chime in.
I don't recall for sure if it's 2007 or 2008.
The layout of the fuses and relays hasn't changed through the years. Last time I checked was with a 2013. It was the same, too.

I think VancouverRubi was asking for a picture of the high speed relay's location, behind the driver's side headlight.
Last edited by ronjenx; 12-18-2015 at 04:27 AM.
ronjenx is offline
Reply Like
Old 12-18-2015, 09:55 PM
  #16
JK Enthusiast
Thread Starter

VancouverRubi's Avatar

Join Date: Jan 2013
Location: Vancouver, Canada
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by ronjenx
I don't recall for sure if it's 2007 or 2008. The layout of the fuses and relays hasn't changed through the years. Last time I checked was with a 2013. It was the same, too. I think VancouverRubi was asking for a picture of the high speed relay's location, behind the driver's side headlight.
Yes, if anyone has a picture handy of the high speed relay. If not, I'll pop the hood again tomorrow and take a closer look
VancouverRubi is offline
Reply Like
