CamShaft Sensor Connector Wiring
#1
I'm an idiot and left the connector to the cam sensor unplugged and it caught in the serpentine belt and was ripped off. I bought the pigtail connector from Napa but I'm not sure which 3 wires from my old connector to connect to each of the new ones. I tested the old wires and I'm getting about 5v at each of the 3. Does anyone know of have a diagram as to which 3 connect?

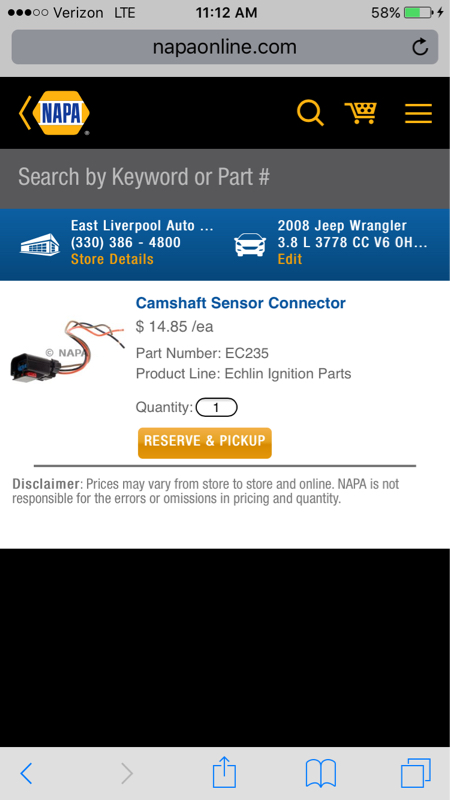

I attached a picture of the pigtail I have for reference.
I attached a picture of the pigtail I have for reference.
#3
JK Jedi Master
It would help to know a little bit about your vehicle. Maybe fill out your profile, or put some info in your signature.
Looking at the page you posted, yours is a 2008?
edit to add:
for the 2008...
pin 1 = 5v supply; yellow wire with pink tracer (YL/PK)
pin 2 = Sensor Ground; dark blue wire with dark green tracer (DB/DG)
pin 3 = Sensor Signal; dark blue wire with gray tracer (DB/GY)
Looking at the page you posted, yours is a 2008?
edit to add:
for the 2008...
pin 1 = 5v supply; yellow wire with pink tracer (YL/PK)
pin 2 = Sensor Ground; dark blue wire with dark green tracer (DB/DG)
pin 3 = Sensor Signal; dark blue wire with gray tracer (DB/GY)
Last edited by ronjenx; 01-13-2016 at 09:46 AM.
#5
JK Jedi Master
Do you still have the old connector? It should have pin numbers in it. The sensor receptacle may have numbers in it, too.
If not, post a good picture looking into the new connector, with the latch on top. Include the same for the old connector, if you have it. I will see if I can edit the numbers into the photos.
#6
If I still had the old connector I wouldn't be asking for help. I would easily be able to identify by plugging it in and matching the corresponding slots from the new connector. I'm not sure what you want a picture of. I have 3 ripped wires (from the old connector) and a sensor that's bolted into the block. Yes the new sensor fits everything is good all that stuff. All I need to know is, looking at the sensor from the front of the motor, which wire color goes where corresponding to the sensor from the old connector. So as if you were holding the connector in your hand looking at the red tab that locks/unlocks the connector, which wire color is on the left, the middle, and the right.
#7
JK Jedi Master
If I still had the old connector I wouldn't be asking for help. I would easily be able to identify by plugging it in and matching the corresponding slots from the new connector. I'm not sure what you want a picture of. I have 3 ripped wires (from the old connector) and a sensor that's bolted into the block. Yes the new sensor fits everything is good all that stuff. All I need to know is, looking at the sensor from the front of the motor, which wire color goes where corresponding to the sensor from the old connector. So as if you were holding the connector in your hand looking at the red tab that locks/unlocks the connector, which wire color is on the left, the middle, and the right.
Did you look into the sensor socket to see if the pins are numbered, as previously suggested?
The pins in the old connector were numbered 1 thru 3, from right to left, as you look into the connector with the latch on top.
