wider than 12.5" tires on your jk???

Thread Tools

Old 03-13-2009, 12:04 PM
  #1
JK Enthusiast
Thread Starter

Join Date: Jan 2009
Location: Harlingen, Tx
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Default wider than 12.5" tires on your jk???

So i did a search on 14.5 inch tires and didnt find anything on it. I have some 14.5 SSRs that i just picked up and i want to put them on my jeep. Will need aftermarket wheels but spacers will make BS less than 3.5. What would you guys recommend? I know there was one member that was running 14.5s on their JK. Give me some ideas.............and pics of yours if you got them.......
Old 03-13-2009, 12:53 PM
  #2
JK Newbie

tbone1077's Avatar

Join Date: Feb 2009
Location: Bay City, TX
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Default

I just installed Super Swamper 33/13.50/17's on my JK Unlimited. Never seen 14.50's. Mine has plenty of room and no rubbing, so I don't think it would be a problem, but do not know for sure. Will send a few pics soon, haven't taken any since the lift last weekend.
Old 03-13-2009, 01:03 PM
  #3
JK Newbie

Join Date: Mar 2009
Location: ontario
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Default

mine neither, i'm running 12.5 and loads of room for clearance, as long as you have enough back spacing you should be fine
Old 03-13-2009, 01:15 PM
  #4
JK Enthusiast
Thread Starter

Join Date: Jan 2009
Location: Harlingen, Tx
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by tbone1077
I just installed Super Swamper 33/13.50/17's on my JK Unlimited. Never seen 14.50's. Mine has plenty of room and no rubbing, so I don't think it would be a problem, but do not know for sure. Will send a few pics soon, haven't taken any since the lift last weekend.

I would like to see pictures! I am having a hard time finding JKs with wide super swampers on the net. My Super Swampers are SSRs and they are WIDE
I plan on using some 16x10 procomp wheels with the tires.
Old 03-13-2009, 02:02 PM
  #5
JK Super Freak

JPTwinz's Avatar

Join Date: Feb 2009
Location: Gilbert, Arizona
Posts: 1,694
Likes: 0
Received 2 Likes on 1 Post
Default

I'm running 40x15.50 tires on 20x9 wheels with 4.53" of backspacing and a -12 offset. I rub on the front upper control arms when turning at full steering wheel lock. The Mud Grapplers have gnarly tread on the sidewalls that extend 3-4" in down the sidewall itself (at least on my size tires). When you look at them, they look they will make contact with everything around them but they never do.

Old 03-13-2009, 02:20 PM
  #6
JK Enthusiast
Thread Starter

Join Date: Jan 2009
Location: Harlingen, Tx
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by JPTwinz
I'm running 40x15.50 tires on 20x9 wheels with 4.53" of backspacing and a -12 offset. I rub on the front upper control arms when turning at full steering wheel lock. The Mud Grapplers have gnarly tread on the sidewalls that extend 3-4" in down the sidewall itself (at least on my size tires). When you look at them, they look they will make contact with everything around them but they never do.


Geez! that is an awesome jeep. I like the set up you have with the wide tires and the flares. Well if you are running the monsters with little rubbing then i should be just fine. I dont do any hard wheelin at all. I'll dip the jeep in the mud once in a while and run it on the beach, but thats about it. Big props on your set up .........anyone else got some cool pics to show with their wide tires. LETS MAKE THIS A +12.5 THREAD!
Old 03-13-2009, 02:26 PM
  #7
JK Enthusiast
Thread Starter

Join Date: Jan 2009
Location: Harlingen, Tx
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Default

Also let me know what you guys are experiencing with the wider tires. I am very interested in feedback. ...................just thought, are 9" wheels wide enough?????
Old 03-13-2009, 03:11 PM
  #8
JK Newbie

tbone1077's Avatar

Join Date: Feb 2009
Location: Bay City, TX
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Default

Here is a couple pucs of mine running the 33/13.50/17's and a 2.5 BB lift

Last edited by tbone1077; 03-23-2009 at 06:45 PM.
Old 03-13-2009, 03:40 PM
  #9
JK Enthusiast
Thread Starter

Join Date: Jan 2009
Location: Harlingen, Tx
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by tbone1077
Here is a couple pucs of mine running the 33/13.50/17's and a 2.5 BB lift
Nice jeep tbone! Any problems with rubbing or when wheelin or turning?
Old 03-13-2009, 09:20 PM
  #10
JK Enthusiast

JKJosh's Avatar

Join Date: Jul 2008
Location: Seaford DE
Posts: 294
Likes: 0
Received 0 Likes on 0 Posts
Default

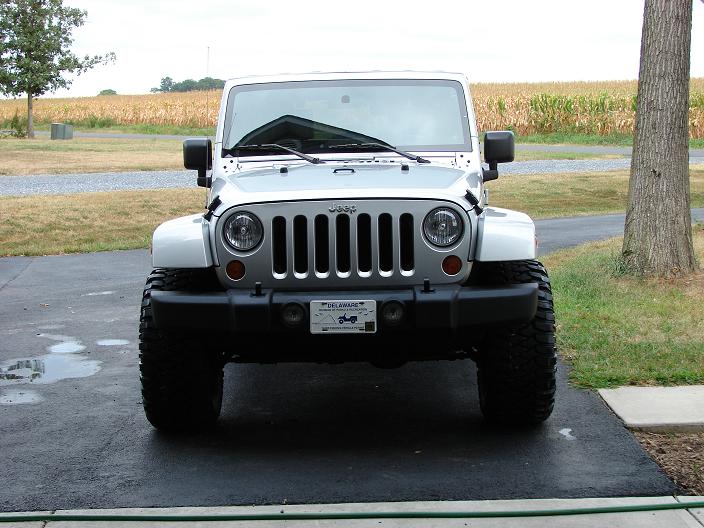

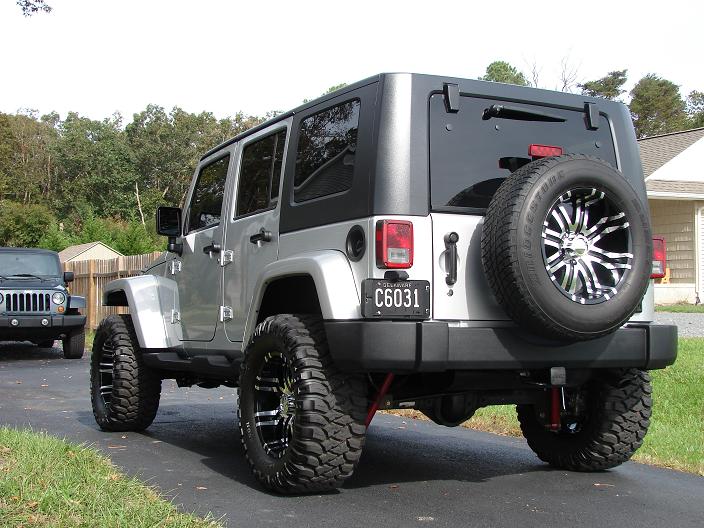

I have 13.50's with 3 in of lift. The only off-roading I've done is beach and playing in snow. I have had no issue what so ever with rubbing. I also have had them mounted on 2 sets of 9 in wide wheels, rockstars and american eagle 197's. Here are some pics-






Good Luck with your decision.
Attached Thumbnails Click image for larger version

Name:	jeep_058a.JPG
Views:	14897
Size:	91.7 KB
ID:	20662   Click image for larger version

Name:	jeep_002a.JPG
Views:	6992
Size:	85.6 KB
ID:	20663
