way to many wires going to the battery
#1
JK Enthusiast
Thread Starter
Join Date: Sep 2009
Location: vail, co
Posts: 154
Likes: 0
Received 0 Likes
on
0 Posts
way to many wires going to the battery
I could use some help it's beginning to look like a hot mess under the hood, and with an onboard air compressor getting mounted soon, I am running out of places on the battery.
I remember seeing where people are mounting terminal bars under the hood but can't seem to find a link anywhere. At the the time i never thought I'd go this far down the rabbit mod hole.
Any help would be appreciated.
I remember seeing where people are mounting terminal bars under the hood but can't seem to find a link anywhere. At the the time i never thought I'd go this far down the rabbit mod hole.
Any help would be appreciated.
#2
I could use some help it's beginning to look like a hot mess under the hood, and with an onboard air compressor getting mounted soon, I am running out of places on the battery. I remember seeing where people are mounting terminal bars under the hood but can't seem to find a link anywhere. At the the time i never thought I'd go this far down the rabbit mod hole. Any help would be appreciated.
However I did buy a large busbar that I could have just as easily mounted inside that same box and accomplished what you were looking for
Last edited by orangedude71; 03-24-2016 at 10:50 AM.
#3
JK Enthusiast
Join Date: Jan 2014
Location: Bellevue, WA
Posts: 105
Likes: 0
Received 0 Likes
on
0 Posts
Orangedue71 has a nice clean box that's fused and insulated. Perhaps he can post a parts list for repro.
Firstly decide if you need a distribution block, a fuse block, or some combination of the two. BlueSea makes great products that you can get from Amazon, I saw a fuse block on sale this morning.
Buying a terminal bar depends on what you plan to connect to it, they have current limits so buy one that's right sized.
It might be a matter of just replacing your battery terminals with marine terminals and using a longer bolt, which also gives you a hex head instead of 4 sided.
This pic is old, I have more of those 2/0 welding cable connections now, just replaced the bolt and cinched it down.
Firstly decide if you need a distribution block, a fuse block, or some combination of the two. BlueSea makes great products that you can get from Amazon, I saw a fuse block on sale this morning.
Buying a terminal bar depends on what you plan to connect to it, they have current limits so buy one that's right sized.
It might be a matter of just replacing your battery terminals with marine terminals and using a longer bolt, which also gives you a hex head instead of 4 sided.
This pic is old, I have more of those 2/0 welding cable connections now, just replaced the bolt and cinched it down.
Last edited by Unlimited_Fun; 03-24-2016 at 03:57 PM.
#5
BUD Industries NBF-32008 Plastic ABS NEMA Economy Box with Solid Door, 10-5/8" Length x 3-59/64" Width x 2-3/4" Height, Light Gray Finish https://www.amazon.com/dp/B005T7Z75C..._SDi9wbMP577KS
Is the box. That's kind of key because there isn't a lot of space between the battery and hood. Then I used a dollar sheet of scrap abs from tap plastics in the bottom. It's about 1/4" thick. The great part about that is that I could use a pilot hole and a wood screw for mounting everything down to that plastic. After that, you can put whatever your heart desires in the box safely. And then I used a fuse tap to power the relay. I'll put some Velcro on the bottom but it really can't go anywhere.
Is the box. That's kind of key because there isn't a lot of space between the battery and hood. Then I used a dollar sheet of scrap abs from tap plastics in the bottom. It's about 1/4" thick. The great part about that is that I could use a pilot hole and a wood screw for mounting everything down to that plastic. After that, you can put whatever your heart desires in the box safely. And then I used a fuse tap to power the relay. I'll put some Velcro on the bottom but it really can't go anywhere.
#6
JK Enthusiast
Join Date: Jan 2014
Location: Bellevue, WA
Posts: 105
Likes: 0
Received 0 Likes
on
0 Posts
This is an example of the Blue Sea parts on sale, it will be on a lightening deal this afternoon for a while. I have great experience with these, everything is rock solid. Plus if you have an issue just call them and you'll speak to a guy in WA state. I was able to twist off a lug and since the products are warranted for life, they just sent me another in the mail no questions asked.
Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus & Cover
If you buy anything from Blue Sea, Bussman or Hella, you'll be fine. I mounted my fuse block on to the top of the main fuse box under the hood, just bolted on. For me it's fine there and very convenient.
Check these out:
Bussmann (CB185-100) 100 Amp Type III Circuit Breaker
Blue Sea Systems DualBus Plus 150A BusBar - 1/4
OLS PSZACCEPS052H 10-Way LED Illuminated Blade Fuse Box with Cover
.
Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus & Cover
If you buy anything from Blue Sea, Bussman or Hella, you'll be fine. I mounted my fuse block on to the top of the main fuse box under the hood, just bolted on. For me it's fine there and very convenient.
Check these out:
Bussmann (CB185-100) 100 Amp Type III Circuit Breaker
Blue Sea Systems DualBus Plus 150A BusBar - 1/4
OLS PSZACCEPS052H 10-Way LED Illuminated Blade Fuse Box with Cover
.
Trending Topics
#9
JK Enthusiast
Join Date: Jan 2013
Location: chula vista CA
Posts: 155
Likes: 0
Received 0 Likes
on
0 Posts

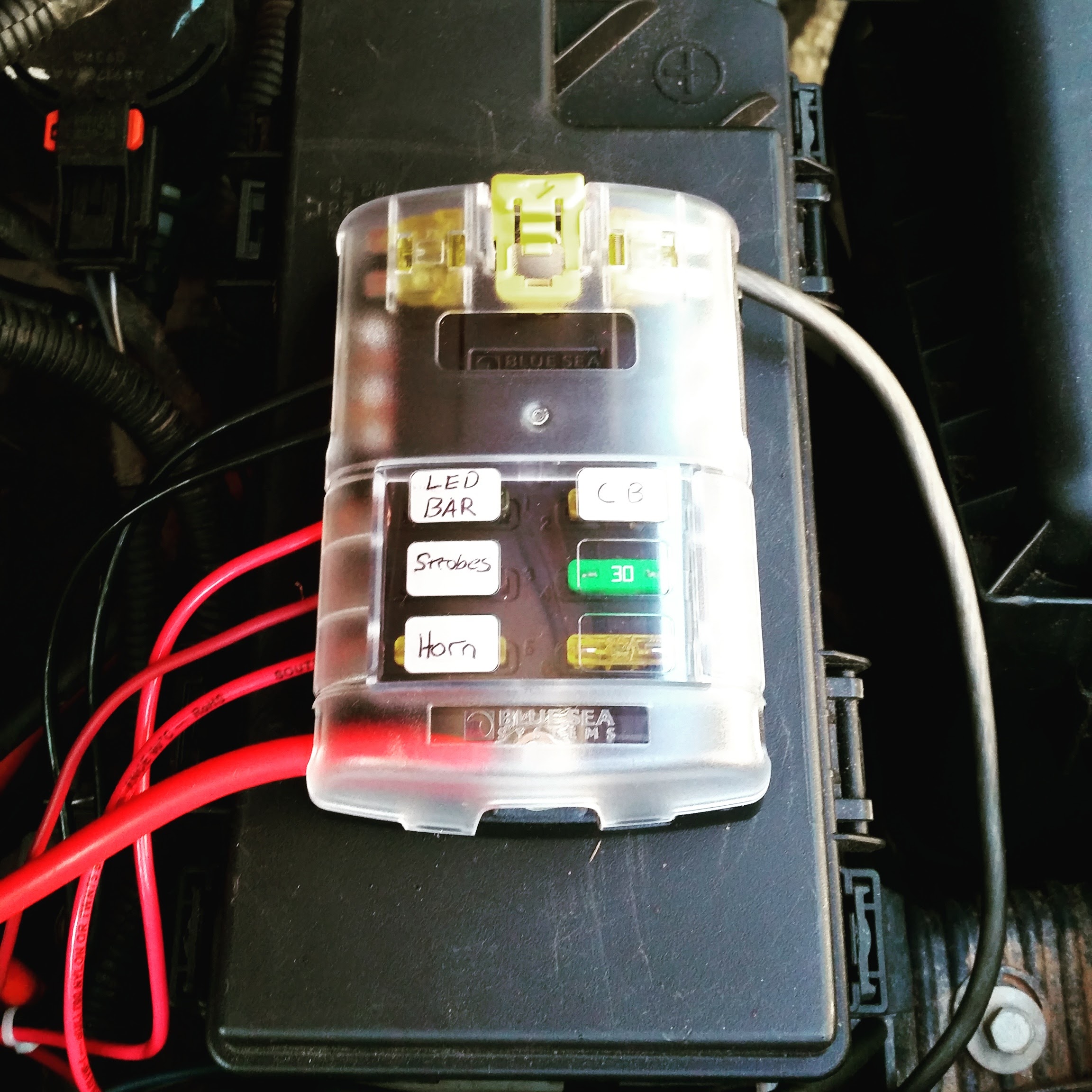

Highly recommend the Blue Sea Systems Bus. Very High quality, and keeps things pretty neat under the hood.
Attachment 641937
Attachment 641937
