Toe-in question with hydro assist
#1
Super Moderator
Thread Starter
Toe-in question with hydro assist
So I took my rig to a shop where a friend works where he threw it on their alignment system to read my current specs.
I have hydro assist.
I'm running the synergy tie rod which has an adjuster sleeve on the passenger side.
Current toe specs:
Driver = +0.73
Passenger = +0.2
In my head, I can't use the adjusting sleeve for this as I need to pull the driver side in while leaving the passenger stationary. I say that as the hydro mount is welded and so that can be used to hold he tie rod stationary.
The jeep does pull slightly to the driver side so that side being out more than the passenger corroborates that. (the hydro holding everything stationary).
So I'm thinking I need to drop the driver TRE and thread it in to the tie rod a bit while leaving the adjuster sleeve where it's at as well as no adjustment to the length of the hydro assist shaft.???
Am I thinking about this correctly?
I have hydro assist.
I'm running the synergy tie rod which has an adjuster sleeve on the passenger side.
Current toe specs:
Driver = +0.73
Passenger = +0.2
In my head, I can't use the adjusting sleeve for this as I need to pull the driver side in while leaving the passenger stationary. I say that as the hydro mount is welded and so that can be used to hold he tie rod stationary.
The jeep does pull slightly to the driver side so that side being out more than the passenger corroborates that. (the hydro holding everything stationary).
So I'm thinking I need to drop the driver TRE and thread it in to the tie rod a bit while leaving the adjuster sleeve where it's at as well as no adjustment to the length of the hydro assist shaft.???
Am I thinking about this correctly?
#3
JK Enthusiast
I'm not at all knowledgeable on steering components, but I thought that the solid axle tie-rod style steering connection just had one toe-in reading. If the toe was off, you simply don't have a straight steering wheel. The toe is typically measured in inches as well, usually 1/8" is what I remember is normal. If you've bent your tie rod
Camber and castor can be off per side depending on what adjustability you've added or components you've bent or broken.
edit: meant to say if the toe was off side to side the steering wheel isn't straight. A bent tie rod would just make it harder to measure. Toe is just the difference of the measurement between the front and the rear of the wheel hub. A toe in of 1/8" means the front distance between the hubs is 1/8" less than the rear.
Camber and castor can be off per side depending on what adjustability you've added or components you've bent or broken.
edit: meant to say if the toe was off side to side the steering wheel isn't straight. A bent tie rod would just make it harder to measure. Toe is just the difference of the measurement between the front and the rear of the wheel hub. A toe in of 1/8" means the front distance between the hubs is 1/8" less than the rear.
Last edited by Smudgeontheglass; 06-30-2016 at 09:19 AM.
#4
JK Jedi
I'm not at all knowledgeable on steering components, but I thought that the solid axle tie-rod style steering connection just had one toe-in reading. If the toe was off, you simply don't have a straight steering wheel. The toe is typically measured in inches as well, usually 1/8" is what I remember is normal. If you've bent your tie rod
Camber and castor can be off per side depending on what adjustability you've added or components you've bent or broken.
Camber and castor can be off per side depending on what adjustability you've added or components you've bent or broken.
Last edited by Maertz; 06-30-2016 at 08:59 AM.
#5
Super Moderator
Thread Starter
Maertz - So that's the bit I'm confused about. I see two ways to do this.
1. Unhook the heim joint tying the ram to the tie rod. Adjust toe. Adjust rod on ram to hook it back up.
2. Drop the TRE on the driver side and adjust the TRE OUT by about 1cm (0.423 inches).
I'm overthinking this. Option 1 is probably best.
1. Unhook the heim joint tying the ram to the tie rod. Adjust toe. Adjust rod on ram to hook it back up.
2. Drop the TRE on the driver side and adjust the TRE OUT by about 1cm (0.423 inches).
I'm overthinking this. Option 1 is probably best.
#7
JK Jedi
Maertz - So that's the bit I'm confused about. I see two ways to do this.
1. Unhook the heim joint tying the ram to the tie rod. Adjust toe. Adjust rod on ram to hook it back up.
2. Drop the TRE on the driver side and adjust the TRE OUT by about 1cm (0.423 inches).
I'm overthinking this. Option 1 is probably best.
1. Unhook the heim joint tying the ram to the tie rod. Adjust toe. Adjust rod on ram to hook it back up.
2. Drop the TRE on the driver side and adjust the TRE OUT by about 1cm (0.423 inches).
I'm overthinking this. Option 1 is probably best.
Trending Topics
#8
JK Jedi
I dont have one but it says on there website both sides use a left hand threaded tre?
It has to both adjust. Otherwise if the one side went out youd have to buy an all new tie rod? If that is true id never buy that product...
Also your pic says .02 while you typed .2?
You want both tires straight then to set half toe on each side and the one readout number would be total toe if I'm not mistaken?
If you cant drop the driverside far enough with the ram on yes you may have to take off one end.
It has to both adjust. Otherwise if the one side went out youd have to buy an all new tie rod? If that is true id never buy that product...
Also your pic says .02 while you typed .2?
You want both tires straight then to set half toe on each side and the one readout number would be total toe if I'm not mistaken?
If you cant drop the driverside far enough with the ram on yes you may have to take off one end.
Last edited by Maertz; 06-30-2016 at 09:17 AM.
#9
Super Moderator
Thread Starter
Yeah, passenger has an adjuster sleeve. Driver runs the TRE into the tie rod with a jam nut to hold it in place.
The reason I said option 1 is because of the above. If I don't unhook the ram and just use the adjuster sleeve on the passenger side, I don't believe it'll get me where I need to be as the ram would hold the tie rod in place an just move the passenger side.
The reason I said option 1 is because of the above. If I don't unhook the ram and just use the adjuster sleeve on the passenger side, I don't believe it'll get me where I need to be as the ram would hold the tie rod in place an just move the passenger side.
#10
Super Moderator
Thread Starter
Originally Posted by Maertz
I dont have one but it says on there website both sides use a left hand threaded tre?
It has to both adjust. Otherwise if the one side went out youd have to buy an all new tie rod? If that is true id never buy that product...

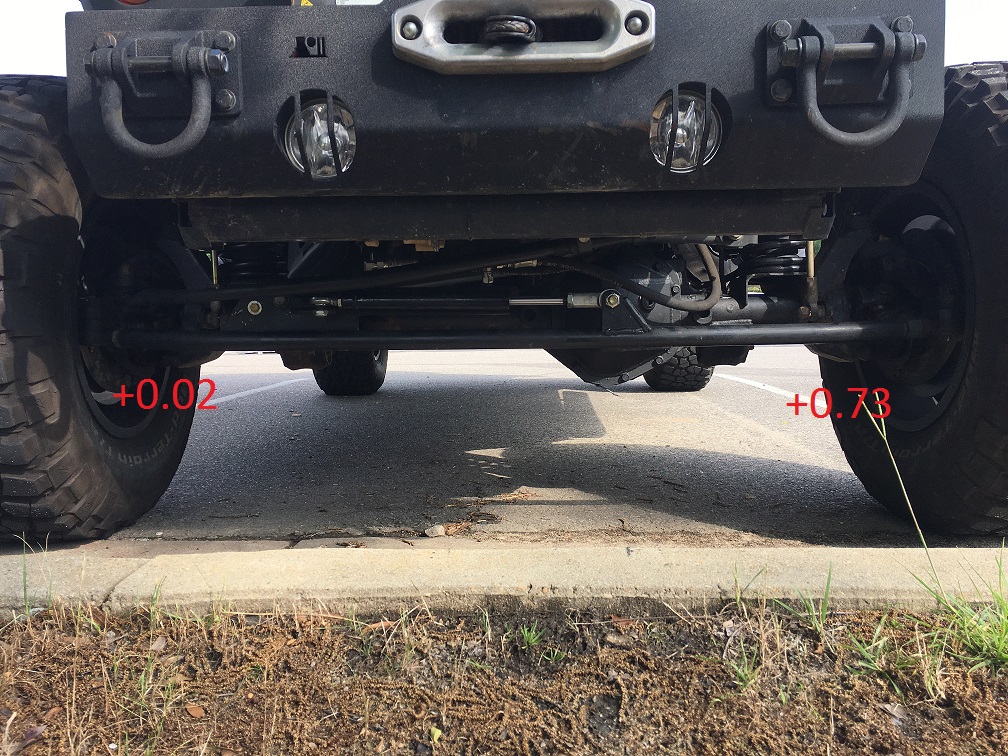

Also your pic says .02 while you typed .2?
