Shock length - rear ome sport vs ome lt
Does anyone know the shock length difference between the ome nitro sport and the long travel version(60067 and 60067L)?
Is it exactly 2.5" ?
I have the LTs right now and at full axle drop my rear coils fall out and my sway bar hits the tire. Just 1.75 inches higher and everything is fine. I don't want to add wheel spacers so I'm thinking the easiest solution is shorter shocks for the rear
Is it exactly 2.5" ?
I have the LTs right now and at full axle drop my rear coils fall out and my sway bar hits the tire. Just 1.75 inches higher and everything is fine. I don't want to add wheel spacers so I'm thinking the easiest solution is shorter shocks for the rear
Last edited by troyboy; 12-06-2011 at 08:20 AM.
12-06-2011, 03:53 AM
#2
JK Super Freak
Join Date: Sep 2011
Location: Boston, MA
Posts: 1,012
Likes: 0
Received 0 Likes
on
0 Posts
Does anyone know the shock length difference between the ome nitro sport and the long travel version(60067 and 60067L)?
Is it exactly 2.5" ?
I have the LTs right now and at full axle drop my rear shocks fall out and my track bar hits the tire. Just 1.75 inches higher and everything is fine. I don't want to add wheel spacers so I'm thinking the easiest solution is shorter shocks for the rear
Is it exactly 2.5" ?
I have the LTs right now and at full axle drop my rear shocks fall out and my track bar hits the tire. Just 1.75 inches higher and everything is fine. I don't want to add wheel spacers so I'm thinking the easiest solution is shorter shocks for the rear
12-06-2011, 08:19 AM
#4
JK Super Freak
Thread Starter
Join Date: Oct 2007
Location: Parksville, British Columbia
Posts: 1,030
Likes: 0
Received 0 Likes
on
0 Posts
I'm assuming you mean your coils fall out? Although I don't know how the track bar would hit the tire. but maybe consider either a trackbar relocation kit, or at the very least so spring clips to keep the coils in place? I have the non LT version of the ome, and I know I wish I had the long travels. would be nice to get that extra flex
12-06-2011, 11:22 AM
#5
JK Super Freak
Thread Starter
Join Date: Oct 2007
Location: Parksville, British Columbia
Posts: 1,030
Likes: 0
Received 0 Likes
on
0 Posts
Well as it turns out, the only way this happens is if my rear axle drops straight down and I'm not planning on jumping my jeep so I'm going to keep my setup as is.
12-06-2011, 11:35 AM
#6
JK Super Freak
Join Date: Sep 2011
Location: Boston, MA
Posts: 1,012
Likes: 0
Received 0 Likes
on
0 Posts
12-06-2011, 11:39 AM
#7
JK Super Freak
Thread Starter
Join Date: Oct 2007
Location: Parksville, British Columbia
Posts: 1,030
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
12-06-2011, 01:06 PM
#8
JK Enthusiast
Join Date: Sep 2011
Location: Denver
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts

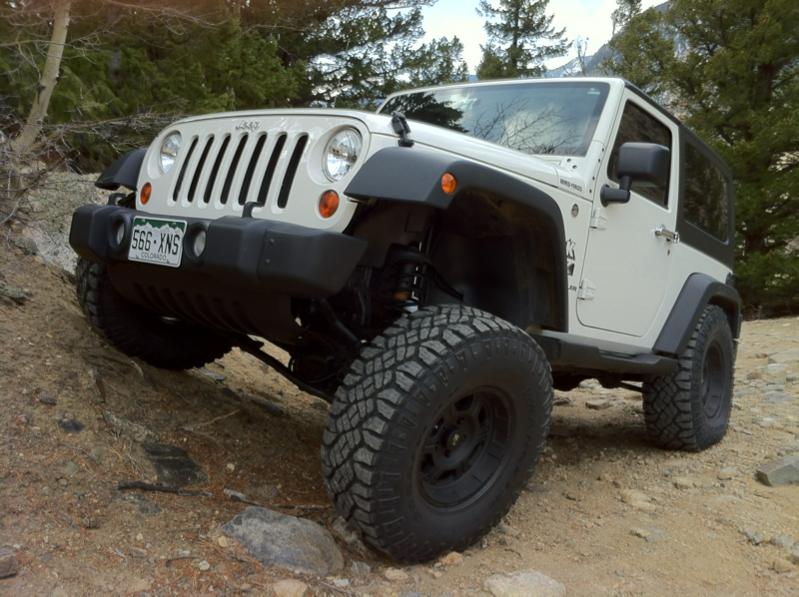

Do you have rear bump stop extensions? They come with the rear panhard/trackbar extension kit. They are roughly 2in blocks that bolt onto the top of the rear axle tubes. It will slightly limit flex but it will prevent over flex and keep your trackbar from hitting the R.R. shock at full flex to that side. I have a 2.5 inch lift and long travel shocks and have tested the flex with no issues.
