Routing Winch Battery Cables for JK 2012
#1
JK Newbie
Thread Starter
Join Date: Aug 2012
Location: na
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Routing Winch Battery Cables for JK 2012
Hi everyone,

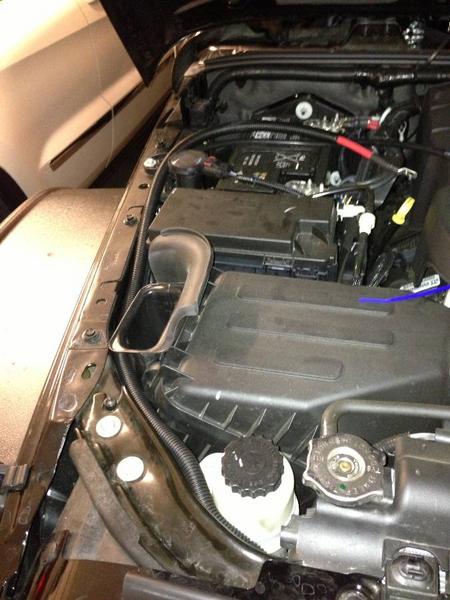

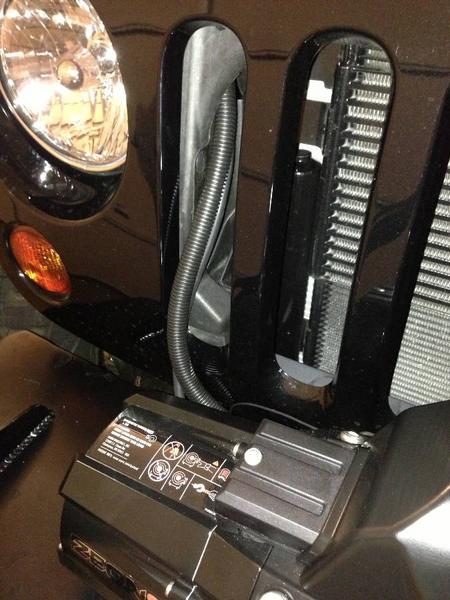

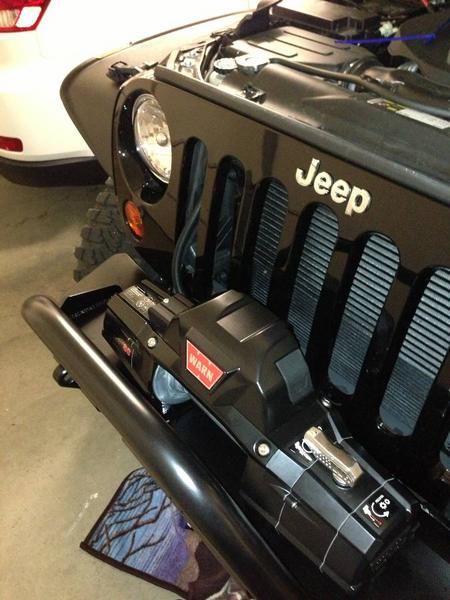

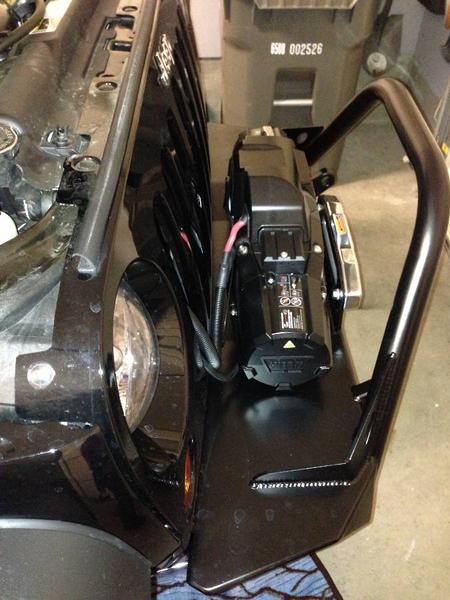

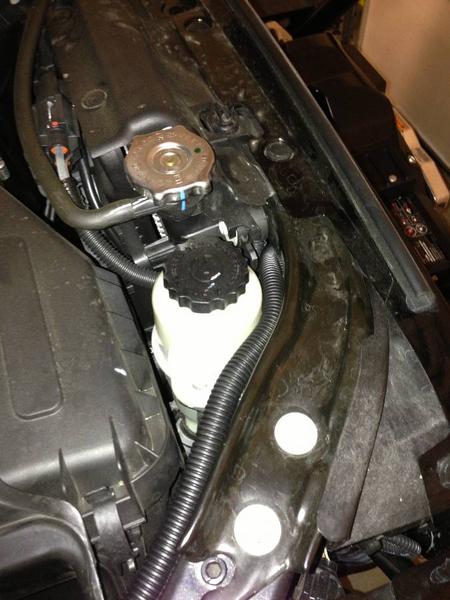

What is the best way to route the battery cables from the winch to the battery? I noticed an access hole (top left) just inside the grill on the 2012 JK (not sure if this is true for other JK years). Appears this will work but curious if the cables are too close to the radiator (too much heat?). There are no sharp edges or bolts which will rub the cables and I can probably zip tie a few places to ensure the cables do not move. That said, is there a better routing path on the 2012? It appears I can route below the grill and take the cables straight up behind the headlight as well. Does anyone have any photos or advice for routing the battery cables? I've attached a few photos of how it looks routing through the grill (just a dry run tonight). thanks,
What is the best way to route the battery cables from the winch to the battery? I noticed an access hole (top left) just inside the grill on the 2012 JK (not sure if this is true for other JK years). Appears this will work but curious if the cables are too close to the radiator (too much heat?). There are no sharp edges or bolts which will rub the cables and I can probably zip tie a few places to ensure the cables do not move. That said, is there a better routing path on the 2012? It appears I can route below the grill and take the cables straight up behind the headlight as well. Does anyone have any photos or advice for routing the battery cables? I've attached a few photos of how it looks routing through the grill (just a dry run tonight). thanks,
#5
JK Enthusiast
Join Date: Feb 2012
Location: Sarasota FL
Posts: 154
Likes: 0
Received 0 Likes
on
0 Posts
I went under the grill. I had to take the airbox out to route the wires. Worth the time though. I do like your conduit around the wires though. Might use some of that around the winch where the wires show a bit.
#6
JK Enthusiast
is that the new Warn Zeon on a PSC Brawler lite? If so how does it fit and did you use the PSC mount or the Warn mount for the fairlead? Ive been looking into putting on the same winch now that they are out and I can get my hands on one.
Trending Topics
#10
JK Newbie
Thread Starter
Join Date: Aug 2012
Location: na
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Correct - new Warn Zeon 8S on PSC Brawler lite bumper. I used the PSC winch mount plate and the Warn fairlead. I did not realize Warn had a black fairlead, but the polished one looks cool. The PSC mount plate provides just enough height so the ends of the winch do not touch the bumper (as bumper angles up slightly). The Warn mounting bolts were a little too long so I used an extra flat and lock washer. Two of the mount bolts are hard to tighten (tough to reach) but the other two I was able to torque by accessing the bolts through the holes of the PSC skid plate.
