Off road olny third brake light
#1
JK Newbie
Thread Starter
Join Date: Oct 2014
Location: Florida
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
Just bought the third brake light with license plate light but I can't figure out how to wire the thing up I tried going through the old third brake light harness through the tailgate but it won't light up I'm not the best at wiring but can anyone help a fellow jeeper out!?
#3
JK Enthusiast
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)

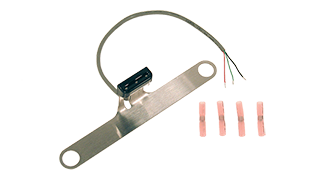

If you have this one...
![Click image for larger version
Name: LD-PL1_s.png
Views: 193
Size: 38.6 KB
ID: 601976](https://www.jk-forum.com/forums/attachment.php?attachmentid=601976&thumb=1&d=1513724301)
with the brake light and license plate light, then you need 3 wires and the factory brake light harness only has 2 wires. You can fish another wire through the factory sleeve in the tailgate - just use a small (18 or 16 gauge) wire. I actually added a backup light (6" LED bar) to mine at the same time, so I had to add 2 more wires. I can send more info and pics if you need more help.
with the brake light and license plate light, then you need 3 wires and the factory brake light harness only has 2 wires. You can fish another wire through the factory sleeve in the tailgate - just use a small (18 or 16 gauge) wire. I actually added a backup light (6" LED bar) to mine at the same time, so I had to add 2 more wires. I can send more info and pics if you need more help.
#4
Former Vendor
Join Date: Oct 2012
Location: Newton, NJ
Posts: 1,615
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
The ORO Light should have very good wiring instructions with it. As mentioned in the post above you need 3 wires. We put one of the wires into the right brake light and the other two go to the factory 3rd brake light harness.
#5
JK Newbie
Thread Starter
Join Date: Oct 2014
Location: Florida
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
If you have this one... <img src="https://www.jk-forum.com/forums/attachment.php?attachmentid=601976"/> with the brake light and license plate light, then you need 3 wires and the factory brake light harness only has 2 wires. You can fish another wire through the factory sleeve in the tailgate - just use a small (18 or 16 gauge) wire. I actually added a backup light (6" LED bar) to mine at the same time, so I had to add 2 more wires. I can send more info and pics if you need more help. <img src="https://www.jk-forum.com/forums/attachment.php?attachmentid=601982"/>
#7
JK Newbie
Thread Starter
Join Date: Oct 2014
Location: Florida
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#8
JK Enthusiast
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
I don't mean to go back on my offer to help, but I just did a quick search and found 2 separate write-ups for this install and both have the wire color code included. This will be faster than me writing up the entire install. I would be happy to answer any specific questions you might have though. If you send me a PM, I'll send you my number and we can talk or text.
https://www.jk-forum.com/forums/jk-w...elite-29385/#b
https://www.jk-forum.com/forums/jk-w...umper-90672/#b
https://www.jk-forum.com/forums/jk-w...elite-29385/#b
https://www.jk-forum.com/forums/jk-w...umper-90672/#b
#9
JK Newbie
Thread Starter
Join Date: Oct 2014
Location: Florida
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
I don't mean to go back on my offer to help, but I just did a quick search and found 2 separate write-ups for this install and both have the wire color code included. This will be faster than me writing up the entire install. I would be happy to answer any specific questions you might have though. If you send me a PM, I'll send you my number and we can talk or text. https://www.jk-forum.com/forums/jk-w...elite-29385/#b https://www.jk-forum.com/forums/jk-w...umper-90672/#b
#10
JK Enthusiast
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
This is the color code for the factory wiring in the taillight and the ORO colors:
White with yellow line - Brake light - (ORO) Red
White with purple line - Parking lights with license plate light - (ORO) Green
White with tan line - Ground - (ORO) Black
