I was attempting to install a Dana-Spicer Ultimate 44 today for the second time(first one broke and this is a warranty replacement).
When attempting to install the passenger side axle shaft it won't seem to go all the way in. We looked down the tube and didn't see any obstructions. Greased the splines and saw only about the first half is engaging, but the end of the axle shft is hitting a medal rod somewhere inside the differential. I believe this is a pin on the carrier.
Any help or thoughts would be useful, I've attached pics of the grease and what the axle shaft looks like installed, you can see it sticks out just a bit too much.![Click image for larger version
Name: IMG_2099.JPG
Views: 491
Size: 1.52 MB
ID: 665945](https://www.jk-forum.com/forums/attachment.php?attachmentid=665945&thumb=1&d=1513732276)
![Click image for larger version
Name: IMG_2100.JPG
Views: 470
Size: 1.41 MB
ID: 665946](https://www.jk-forum.com/forums/attachment.php?attachmentid=665946&thumb=1&d=1513732276)
![Click image for larger version
Name: IMG_2101.JPG
Views: 454
Size: 2.19 MB
ID: 665947](https://www.jk-forum.com/forums/attachment.php?attachmentid=665947&thumb=1&d=1513732276)
When attempting to install the passenger side axle shaft it won't seem to go all the way in. We looked down the tube and didn't see any obstructions. Greased the splines and saw only about the first half is engaging, but the end of the axle shft is hitting a medal rod somewhere inside the differential. I believe this is a pin on the carrier.
Any help or thoughts would be useful, I've attached pics of the grease and what the axle shaft looks like installed, you can see it sticks out just a bit too much.
#2
Super Moderator
![](https://www.jk-forum.com/forums/images/ranks/veteran_navy.png)
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
did the driver's side gain in all the way?
Short of pulling to the dif cover to see what might be preventing the axel from going in I am not sure.
Silly question but are the spine counts correct?
Axel splines not twisted or distorted?
When I installed my U44 the axel shafts slid right in.
R/
Will
Short of pulling to the dif cover to see what might be preventing the axel from going in I am not sure.
Silly question but are the spine counts correct?
Axel splines not twisted or distorted?
When I installed my U44 the axel shafts slid right in.
R/
Will
#3
JK Newbie
Thread Starter
Join Date: Feb 2017
Location: Live Oak,CA
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
The drivers side went in fully and seated properly, the hub bolted on and everything. On my first U44 that broke 5 miles after install(internals built improperly), both shafts slid right in, so something is different about this one.

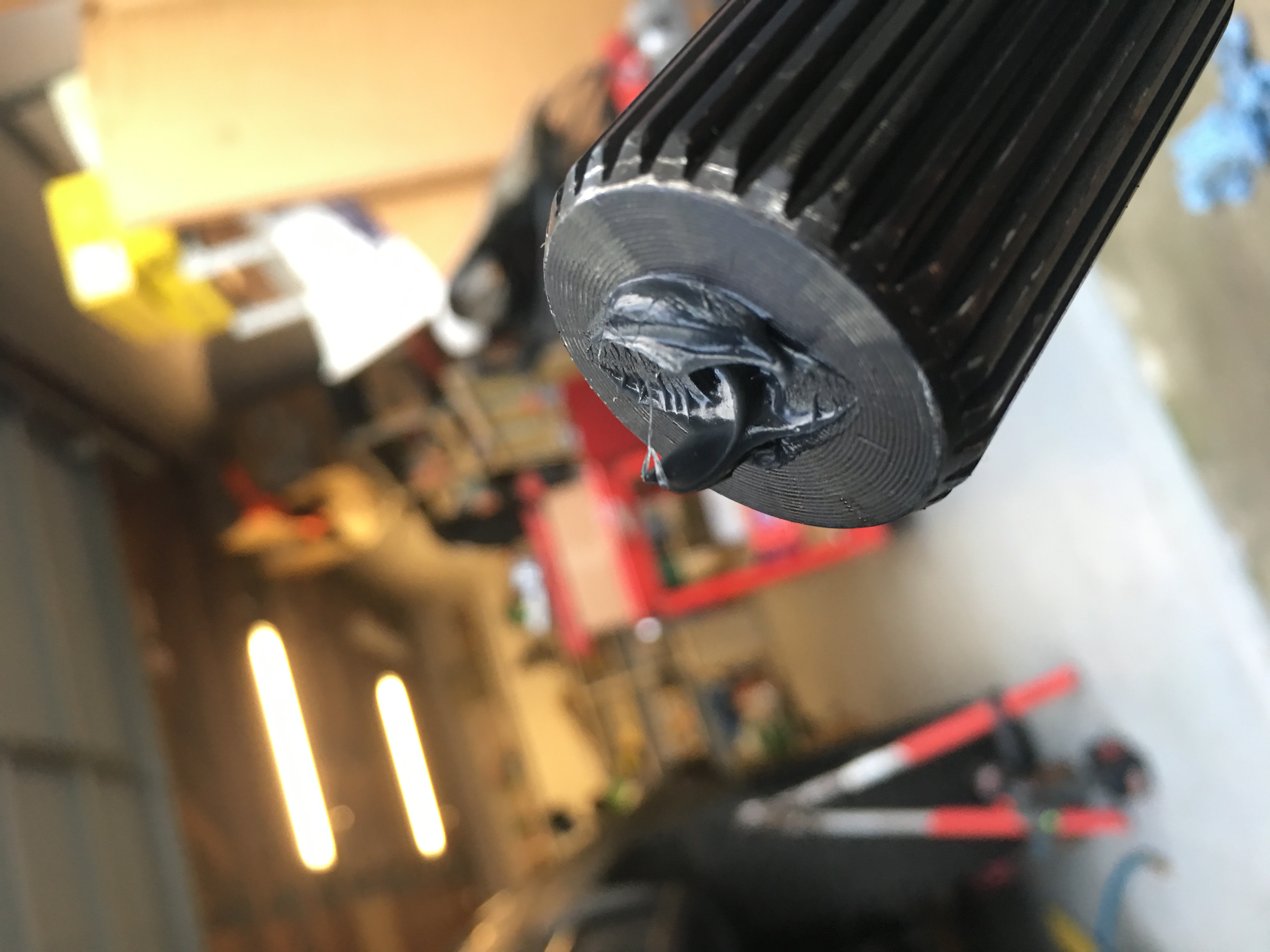

Splines all look great and seem to be correct. They are engaging internally, they just don't seem to go in far enough. We also attempted to lightly tap on the shaft with a mallet to see if it would seat but it is definitely up against that pin as you can see by the dab of grease on the end and the grease mark on the pin when looking down the shaft.
I haven't pulled the dif cover for two reasons:
1) I don't want Dana Spicer to argue that I messed something up looking in there. Doubt they would but better safe than sorry.
2) I have a picture of my last U44 internally and from the looks of it it is impossible to see the shaft anyways.
Splines all look great and seem to be correct. They are engaging internally, they just don't seem to go in far enough. We also attempted to lightly tap on the shaft with a mallet to see if it would seat but it is definitely up against that pin as you can see by the dab of grease on the end and the grease mark on the pin when looking down the shaft.
I haven't pulled the dif cover for two reasons:
1) I don't want Dana Spicer to argue that I messed something up looking in there. Doubt they would but better safe than sorry.
2) I have a picture of my last U44 internally and from the looks of it it is impossible to see the shaft anyways.
#6
JK Jedi Master
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
I see what could be an out-of-focus plastic guide in there. He did say the shaft goes in and hits the cross pin in the differential. That would eliminate the plastic guide as a factor.
#7
JK Newbie
Thread Starter
Join Date: Feb 2017
Location: Live Oak,CA
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.jk-forum.com/forums/images/icons/icon1.gif)
All plastic spacers are accounted for.
The axle housing and shafts are brand new as are the seals, knuckles are the stock ones from my Dana 30.

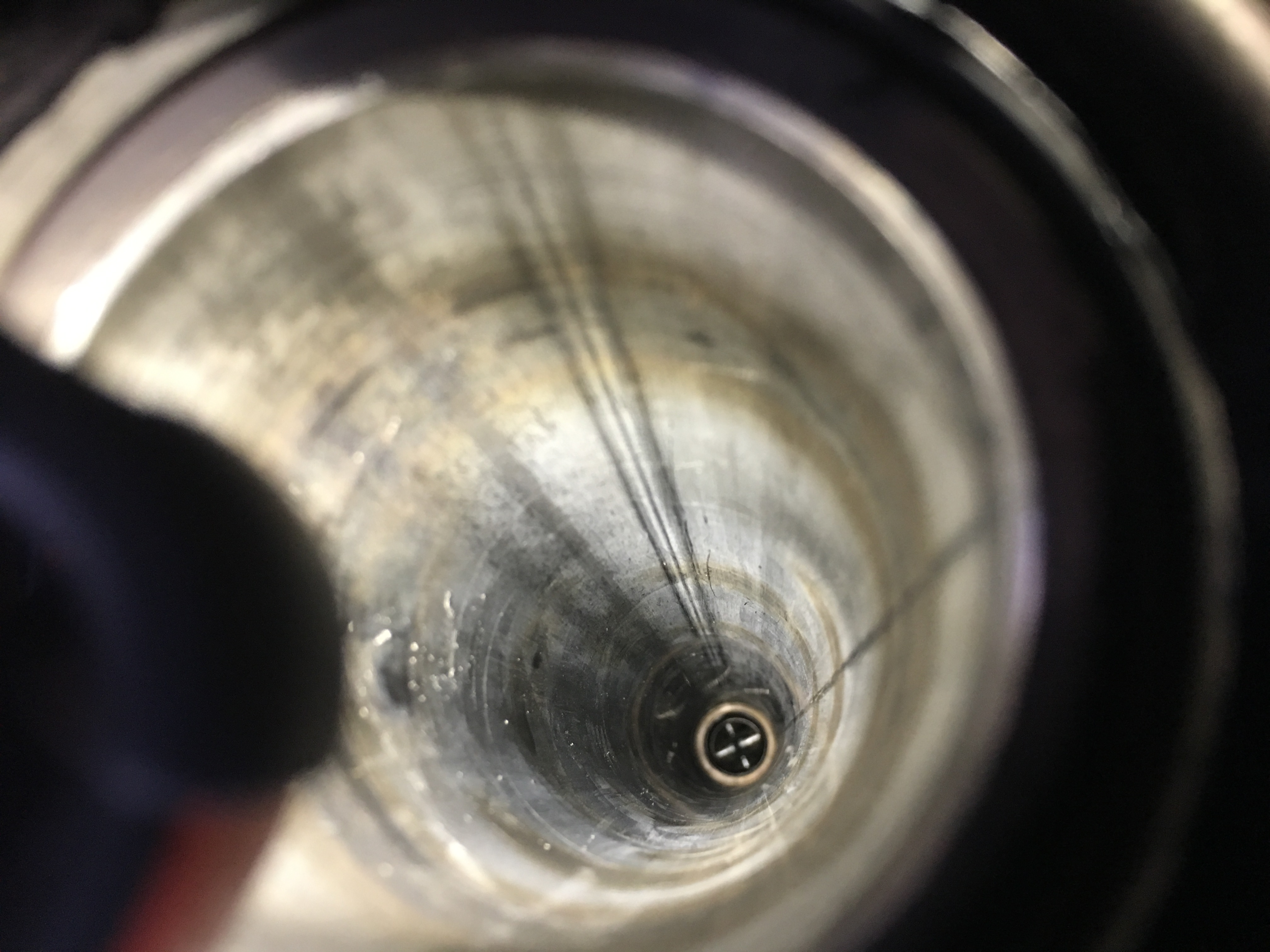

Sorry for the quality of the pic, my goal was mostly to show the grease on the pin in the differential that came from the shaft hitting it.
The axle housing and shafts are brand new as are the seals, knuckles are the stock ones from my Dana 30.
Sorry for the quality of the pic, my goal was mostly to show the grease on the pin in the differential that came from the shaft hitting it.
