Cold Air Intake on the Cheap using stock airbox
Fellow JK'rs, I had a bit of a play around on the weekend with my Aussie variant of the JK with the 2.8litre Turbo Diesel and modified my air intake to fit a pod air filter. I believe the airbox is the same with the petrol? not 100% sure but this is what I did with mine.
Purchase 1x 65mm 90degree PVC plumbing elbow and some automotive silicone sealant.
Trim 20-30mm off one end of the PVC elbow and fit this end into the air intake section of the airbox just near the sensor. It requires some muscle to twist it in there but it is a nice snug fit (alternatively give it a light sand to make it less of an interference fit)
The tubing that directs the air from the outside of the airbox down to the underside of the original air filter requires a 20mm trim, remove it from the airbox and trim up being careful not to cut too much off or else you will remove the retaining mould of the tubing.
Once this is in place and not sealed in do some trial fits with the pod filter attached to the other end. It took me a little while to get the angle just right so that the airbox closed easily.
Once you have got the correct angle and the airbox closes easily apply the sealant to the outer edges of the plumbing elbow and leave to dry for a couple of hours, once dry fasten the pod filter to the elbow, close up the airbox and re-install back into the JK!
ENJOY!!
Mine has been great so far!
The elbow cost me $2.95, silicone sealant approx $5 and the pod filter was about $50.
I will however be making an additional sock to go over the filter when i'm hitting dustier driving, or in the long run installing an snorkel with a pre-filter.
Purchase 1x 65mm 90degree PVC plumbing elbow and some automotive silicone sealant.
Trim 20-30mm off one end of the PVC elbow and fit this end into the air intake section of the airbox just near the sensor. It requires some muscle to twist it in there but it is a nice snug fit (alternatively give it a light sand to make it less of an interference fit)
The tubing that directs the air from the outside of the airbox down to the underside of the original air filter requires a 20mm trim, remove it from the airbox and trim up being careful not to cut too much off or else you will remove the retaining mould of the tubing.
Once this is in place and not sealed in do some trial fits with the pod filter attached to the other end. It took me a little while to get the angle just right so that the airbox closed easily.
Once you have got the correct angle and the airbox closes easily apply the sealant to the outer edges of the plumbing elbow and leave to dry for a couple of hours, once dry fasten the pod filter to the elbow, close up the airbox and re-install back into the JK!
ENJOY!!
Mine has been great so far!
The elbow cost me $2.95, silicone sealant approx $5 and the pod filter was about $50.
I will however be making an additional sock to go over the filter when i'm hitting dustier driving, or in the long run installing an snorkel with a pre-filter.
03-30-2010, 07:54 AM
#3
JK Super Freak
Stay out of the water, I did something very similar to that and the bottom half filled with water beacause the top half doesn't fit, then guess what happened............BANG. you have just created a cold water intake. I was only in 6" of water as well, just playin back and forth and the water must have been splashing up from underneith.
03-30-2010, 08:43 AM
#5
JK Freak
Join Date: Jul 2007
Location: eastern north carolina
Posts: 681
Likes: 0
Received 0 Likes
on
0 Posts

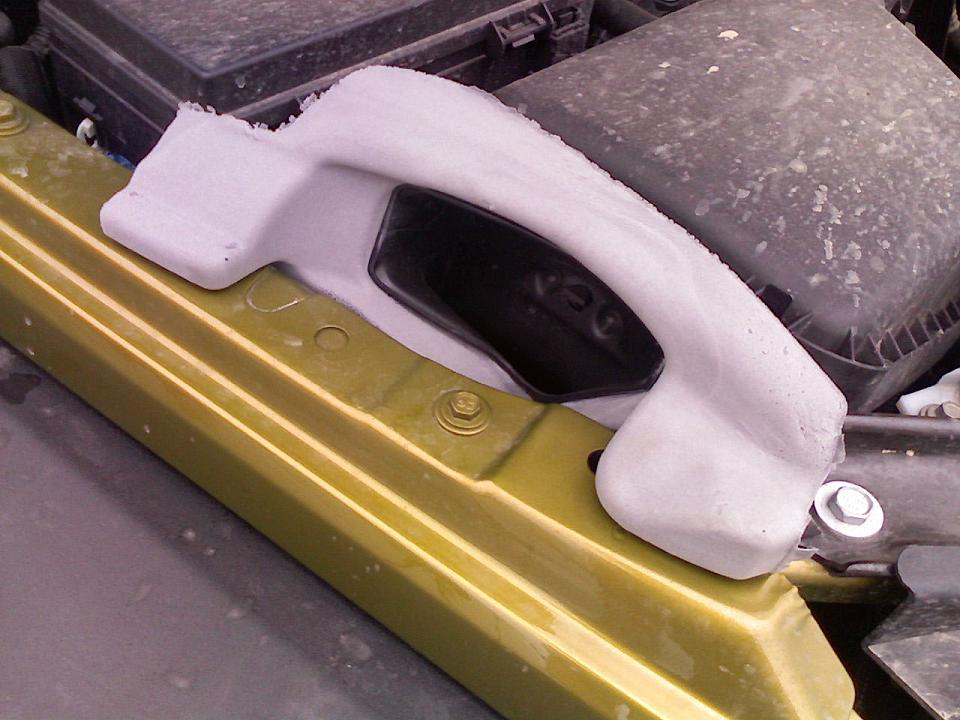

Cheapest intake out there - unfortunately you need to order from outside the USA!
