alignment help please......looking to see if i am with in spec
#1
JK Freak
Thread Starter
Join Date: Aug 2009
Location: los vegas
Posts: 857
Likes: 0
Received 0 Likes
on
0 Posts
alignment help please......looking to see if i am with in spec
i have a 3.5 rock krawler max travel with a .75in day star spacer on it. i have rock krawler tire rod, drag link, drag link flip and brackets. i am running 37x13.50r17 toyo open county mts on atx slabs with bead locks.
i am wondering if my alignment is correct. anyone have any advice on whats out or how to get the rear in shape or if its really far out?

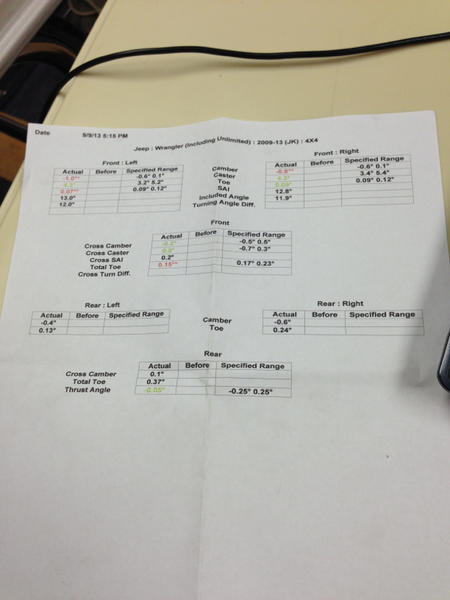

front: left Front: right
actual specified range actual specified range
-1.0 -0.6 to 0.1 camber -0.8 -0.6 to 0.1
4.3 3.2 to 5.2 caster 4.3 3.4 to 5.4
0.07 .09 to .12 toe .09 .09 to .12
13. sai 12.8
12. included angle 11.9
Front
actual specified range
Cross camber -.2 -.5 to .5
cross caster 0.0 -.7 to 0.3
cross sai .2
total toe .15 .17 to .23
rear left rear right
actual specified range actual specified range
-.4 camber -.6
.13 toe .24
Rear
actual specified range
cross camber .1
total toe .37
thrust angle -.05 -.25 to .25
i am wondering if my alignment is correct. anyone have any advice on whats out or how to get the rear in shape or if its really far out?
front: left Front: right
actual specified range actual specified range
-1.0 -0.6 to 0.1 camber -0.8 -0.6 to 0.1
4.3 3.2 to 5.2 caster 4.3 3.4 to 5.4
0.07 .09 to .12 toe .09 .09 to .12
13. sai 12.8
12. included angle 11.9
Front
actual specified range
Cross camber -.2 -.5 to .5
cross caster 0.0 -.7 to 0.3
cross sai .2
total toe .15 .17 to .23
rear left rear right
actual specified range actual specified range
-.4 camber -.6
.13 toe .24
Rear
actual specified range
cross camber .1
total toe .37
thrust angle -.05 -.25 to .25
#3
Former Vendor
Join Date: Oct 2012
Location: Newton, NJ
Posts: 1,615
Likes: 0
Received 0 Likes
on
0 Posts
That looks fine to me. How does it drive? There camber isn't off to bad, and there's nothing you can do about it anyway. It may be possible to adjust the rear control arms to make the rear toe a bit more even, but honestly if you can feel a tenth of a degree difference on a jeep with 37's, I would tell you to go and race nascar.
Last edited by Smashboogie 4x4; 09-09-2013 at 03:27 PM.
#6
Former Vendor
Join Date: Oct 2012
Location: Newton, NJ
Posts: 1,615
Likes: 0
Received 0 Likes
on
0 Posts
The alignment specs look good, so based on that I will say your tires will wear very well. How bad of a vibration are you experiencing? Does it get worse when you turn harder? Have you checked your front u joints? Ball joints, tie rod ends, and wheel bearings should have been checked before the alignment. I would look at some of these items to make sure there good. A near perfect alignment will not cause a vibration when you turn slightly.
#7
JK Freak
Thread Starter
Join Date: Aug 2009
Location: los vegas
Posts: 857
Likes: 0
Received 0 Likes
on
0 Posts
i only really get it when i am turning hard, and at a speed like 35mph plus. everything is good and brand new. u joints are new and tire rods are all new. how do i tell if a wheel bearing is going bad? my jeep has 50k miles on it. its just a major annoyance cuz i cant find whats wrong.
