Installed this same kit on a friends jeep... What a brutal set up! If it didn't look so damed cool when you were done it wouldn't be worth it in my opinion. Also the template they give you for cutting the fender is junk. Lot's of RTV and I don't think this thing will ever leak water though!
Old 04-19-2015 | 09:07 PM
  #12
muddog75's Avatar
JK Newbie

Joined: Apr 2015
Posts: 27
Likes: 0
From: Madison, MS
Default Just a heads up

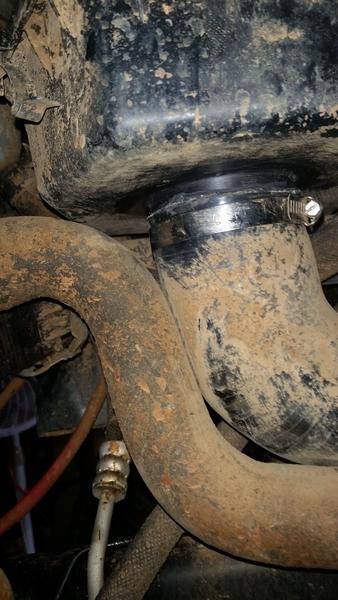

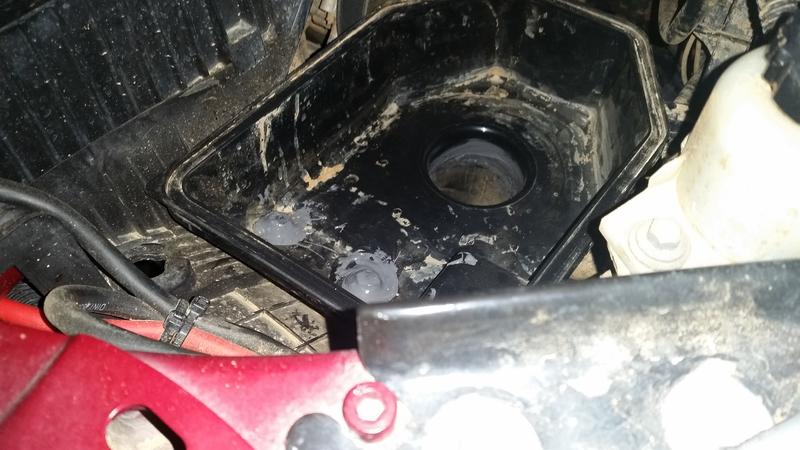

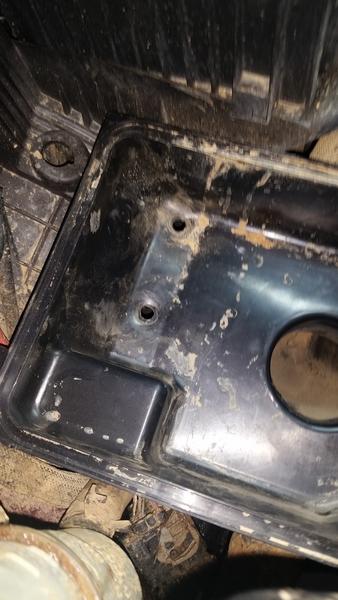

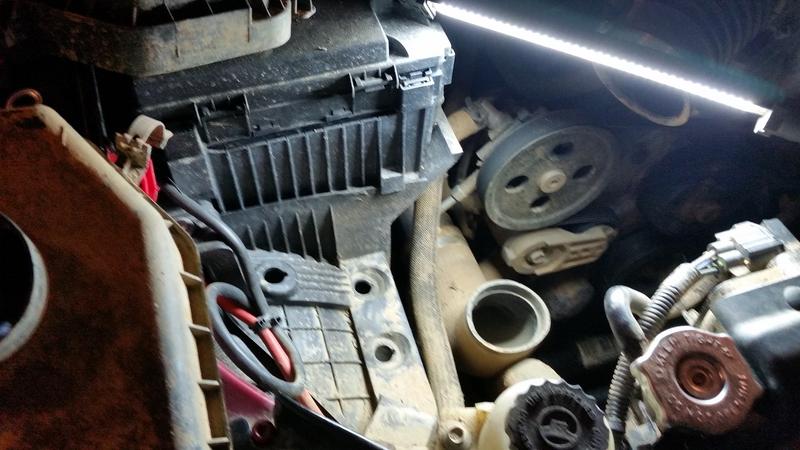

I have the same set up... and a buddy of mine said I should check the hose coming off of the bottom of the air box (filter housing)... he heard that they pop off after some miles..... I checked mine and found that it was off... clamp was still tight on the hose... but was not connected to filter housing.... I pulled it all down and cleaned all parts.... put it all back together and RVT it like the direction said... let it sit for 4 hours... road tested it about five miles.... got to the house and rechecked all parts..... hose popped off again and silicone was dry.... then my inner shade tree mechanic came out.... pulled it back down and re-cleaned all parts.... and went back with JB weld around the tube to the filter housing and filter housing mounting bolts. Let it set for 24 hours .. Road tested it for 85 miles on and off-road. Rechecking it every 20 miles... It has not come off since then.... I have put right at 1000 miles on since the repair... At idle you can feel the air being drawn in at the top intake port. You can still pull air filter housing off you just have to pull the hose off at the pipe... not the bottom of the filter housing..... Hope it helps... worth looking at once and while
Attached Thumbnails Click image for larger version

Name:	356p.jpg
Views:	174
Size:	57.6 KB
ID:	607223   Click image for larger version

Name:	357p.jpg
Views:	174
Size:	59.8 KB
ID:	607224   Click image for larger version

Name:	358p.jpg
Views:	173
Size:	38.7 KB
ID:	607225   Click image for larger version

Name:	001q.jpg
Views:	164
Size:	44.8 KB
ID:	607226
Old 04-19-2015 | 09:10 PM
  #13
muddog75's Avatar
JK Newbie

Joined: Apr 2015
Posts: 27
Likes: 0
From: Madison, MS
Default

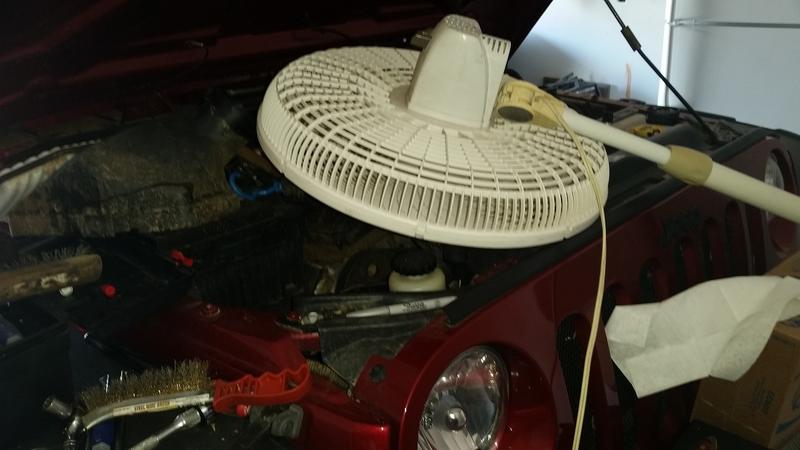

More pics
Attached Thumbnails Click image for larger version

Name:	002q.jpg
Views:	145
Size:	60.7 KB
ID:	607228   Click image for larger version

Name:	004q.jpg
Views:	164
Size:	60.1 KB
ID:	607229   Click image for larger version

Name:	005q.jpg
Views:	148
Size:	45.1 KB
ID:	607230   Click image for larger version

Name:	006q.jpg
Views:	146
Size:	38.4 KB
ID:	607231
Old 04-19-2015 | 09:14 PM
  #14
muddog75's Avatar
JK Newbie

Joined: Apr 2015
Posts: 27
Likes: 0
From: Madison, MS
Default

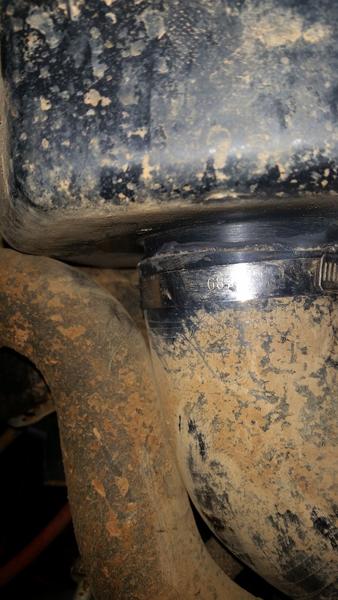

More....
Attached Thumbnails Click image for larger version

Name:	008q.jpg
Views:	156
Size:	36.6 KB
ID:	607233   Click image for larger version

Name:	010q.jpg
Views:	142
Size:	36.0 KB
ID:	607234   Click image for larger version

Name:	015q.jpg
Views:	147
Size:	61.2 KB
ID:	607235   Click image for larger version

Name:	017q.jpg
Views:	139
Size:	40.8 KB
ID:	607236
Old 04-19-2015 | 09:18 PM
  #15
muddog75's Avatar
JK Newbie

Joined: Apr 2015
Posts: 27
Likes: 0
From: Madison, MS
Default

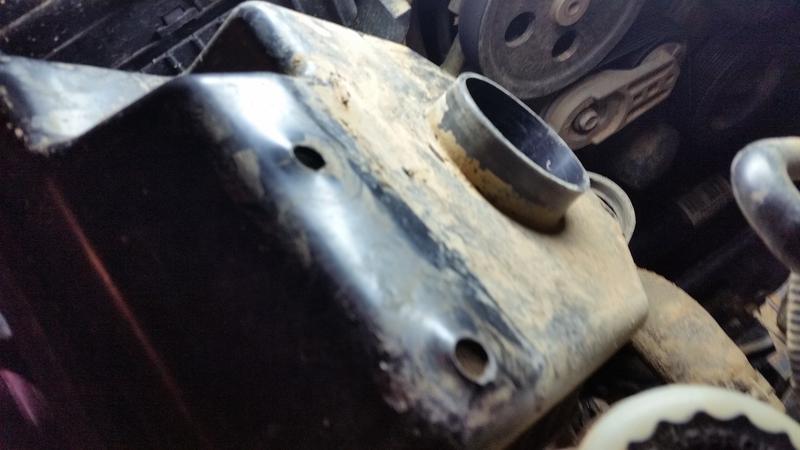

More...
Attached Thumbnails Click image for larger version

Name:	018q.jpg
Views:	124
Size:	41.2 KB
ID:	607240   Click image for larger version

Name:	019q.jpg
Views:	137
Size:	60.0 KB
ID:	607241   Click image for larger version

Name:	020q.jpg
Views:	138
Size:	48.0 KB
ID:	607242   Click image for larger version

Name:	021q.jpg
Views:	126
Size:	45.8 KB
ID:	607243
Old 04-28-2015 | 05:42 AM
  #16
bevan7170's Avatar
Thread Starter
JK Enthusiast

Joined: Nov 2013
Posts: 494
Likes: 0
From: 16648, PA
Default

You made me go out and check mine. It's holing up good and seals look to be in tact but I think after the next rinse another dose of RTV around all the joints wouldn't hurt.
Old 04-28-2015 | 05:11 PM
  #17
muddog75's Avatar
JK Newbie

Joined: Apr 2015
Posts: 27
Likes: 0
From: Madison, MS
Default

Originally Posted by bevan7170
You made me go out and check mine. It's holing up good and seals look to be in tact but I think after the next rinse another dose of RTV around all the joints wouldn't hurt.

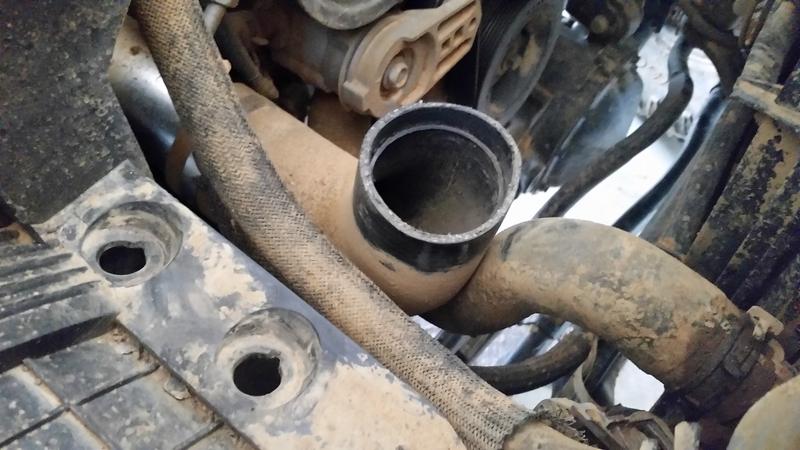

Glad you did not have any issues... its just good to check on it before you take it out to go swimming.... like checking the oil....its just good to know is right...I think my bottom radiator hose was pushing against the 90 degree hose going to the bottom of the air box..... take care
Attached Thumbnails Click image for larger version

Name:	002q.jpg
Views:	122
Size:	60.7 KB
ID:	608595
Old 04-29-2015 | 07:44 PM
  #18
bevan7170's Avatar
Thread Starter
JK Enthusiast

Joined: Nov 2013
Posts: 494
Likes: 0
From: 16648, PA
Default

Originally Posted by muddog75
Glad you did not have any issues... its just good to check on it before you take it out to go swimming.... like checking the oil....its just good to know is right...I think my bottom radiator hose was pushing against the 90 degree hose going to the bottom of the air box..... take care
Yeah I didn't have any contact there but I did lower down where it crosses behind the shock.
Old 04-29-2015 | 10:35 PM
  #19
Jonny K's JK's Avatar
JK Enthusiast

Joined: Dec 2010
Posts: 137
Likes: 1
From: Edmonton
Default

Anybody hook one of theses up to Ripps cai? I don't like the silicone sealing the bolts at the bottom of the air box, the seal between the two air box halves, and now I don't like the elbow at the bottom of the air box either. Seems like the cai would put all these issues to rest. if you can read this, my Jeep is broken....

Last edited by Jonny K's JK; 04-30-2015 at 11:04 AM.
Old 04-30-2015 | 08:07 PM
  #20
muddog75's Avatar
JK Newbie

Joined: Apr 2015
Posts: 27
Likes: 0
From: Madison, MS
Default

Originally Posted by bevan7170
Yeah I didn't have any contact there but I did lower down where it crosses behind the shock.
That's funny... mine has no contact back there by the shock.... you may have just solved this problem... for those of us that had them pop off.... I may not have slid my rubber hose back far enough when it was installed on the pipe.... Mine is still holding strong right now...
