Default Manual Transmission Breather Extension Write-Up

There are plenty of threads on extending lines but I haven't seen a good one on a manual transmission. I just did mine, so here goes.
First a trip to the auto store and home depot.

Supplies:
7' of 5/16'' fuel line. For the manual transmission, 7' is plenty to bring it to the firewall.
hose clamp to fit the fuel line
3/8'' brass 'L' fitting
JB Weld

Tools:
screwdriver
allen wrench
Dremel

Click image for larger version

Name:	IMAG01.jpg
Views:	879
Size:	45.4 KB
ID:	413734

Take the brass fitting and grind around it with a dremel to thin out one tip. This is so it will slide and hold inside the breather nipple.
Click image for larger version

Name:	IMAG02a.jpg
Views:	755
Size:	100.6 KB
ID:	413738

Attach it to the hose with the clamp.
Click image for larger version

Name:	IMAG03.jpg
Views:	711
Size:	35.5 KB
ID:	413739

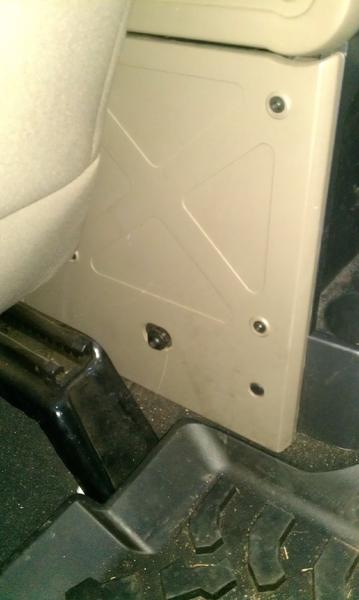

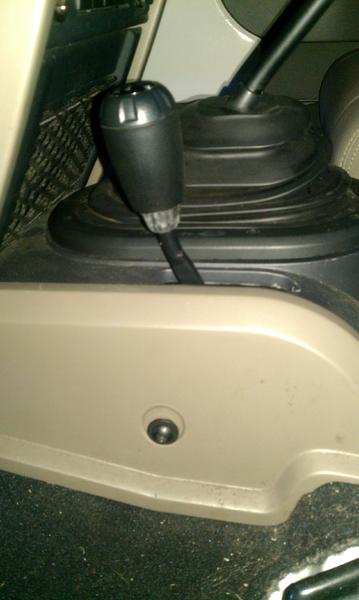

Remove 4 allen screws holding your center console. One is on the side below the shifter, the other on the sides behind the front seats.
Click image for larger version

Name:	IMAG05.jpg
Views:	707
Size:	24.6 KB
ID:	413740Click image for larger version

Name:	IMAG06.jpg
Views:	661
Size:	21.2 KB
ID:	413741
Old 01-25-2013 | 06:49 AM
  #2
toofastcomet's Avatar
Thread Starter
JK Newbie

Joined: Jul 2011
Posts: 49
Likes: 0
From: Helena, AL
Default Continued...

Now remove your shifter knobs. There's no magic here, just pull like you mean it.
Click image for larger version

Name:	IMAG07.jpg
Views:	784
Size:	29.3 KB
ID:	413743

Lift your ebrake as far as you can. Remove the outer boot by prying it up, there are just a couple clips holding it down. Lift to remove the console from the back, up over the ebrake. Look and reach under the console as it's being held up to disconnect one power connection. Then continue to lift and slide the console to the rear and out.
Click image for larger version

Name:	IMAG0182.jpg
Views:	1129
Size:	63.7 KB
ID:	413744

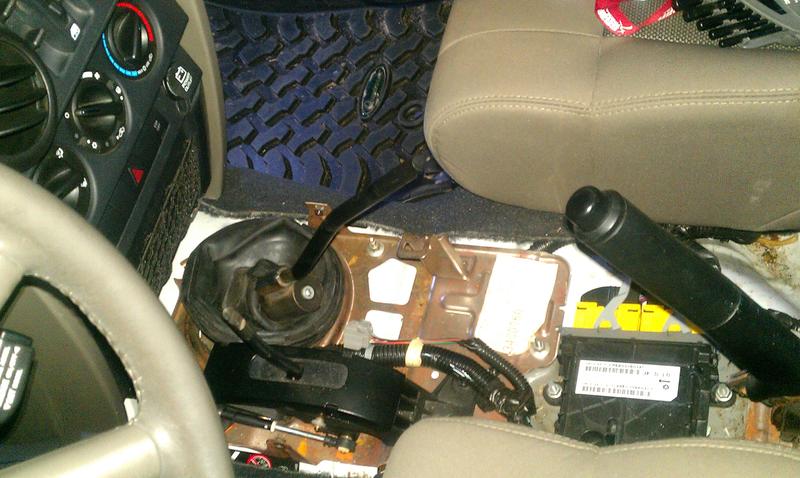

Lift the inner boot up to see the breather hole. Slide your hose down the passenger side of the transmission to the ground. Put the fitting in place to see it fits properly. At this point, I fished the hose to the engine bay where I wanted it. This helped hold the fitting in place for the JB Weld to set.
Click image for larger version

Name:	IMAG0195.jpg
Views:	1848
Size:	53.0 KB
ID:	413745

Pull it out and aside and clean the breather nipple with some cleaner and a rag so the JB Weld will hold! I used mineral spirits.
Click image for larger version

Name:	IMAG0194.jpg
Views:	845
Size:	16.4 KB
ID:	413747

Mix your JB Weld and smear it around the brass tip and slide it in place. I used some tooth-pics to smear extra and clean up the connection. Let this sit for a few hours. I let mine sit overnight. This isn't something you want to break loose and have to do again. Gently finish up putting your hose in place and re-assemble your console.
Click image for larger version

Name:	IMAG0199.jpg
Views:	856
Size:	72.4 KB
ID:	413748

Now get it wet!
Old 02-23-2013 | 11:35 AM
  #3
Rooster76's Avatar
JK Enthusiast

Joined: Oct 2011
Posts: 419
Likes: 2
From: Indy
Default

Thanks for all the pictures.
Old 05-08-2015 | 02:58 AM
  #4
Scythian's Avatar
JK Newbie

Joined: Apr 2015
Posts: 2
Likes: 0
From: Noblesville, IN
Default

Originally Posted by Rooster76
Thanks for all the pictures.
How difficult was it to get the center console off and how long did it take? Thanks for the write-up by the way, awesome. Why in the heck does Jeep just do this at the factory, so much senseless damage has been caused by these stupid values.
