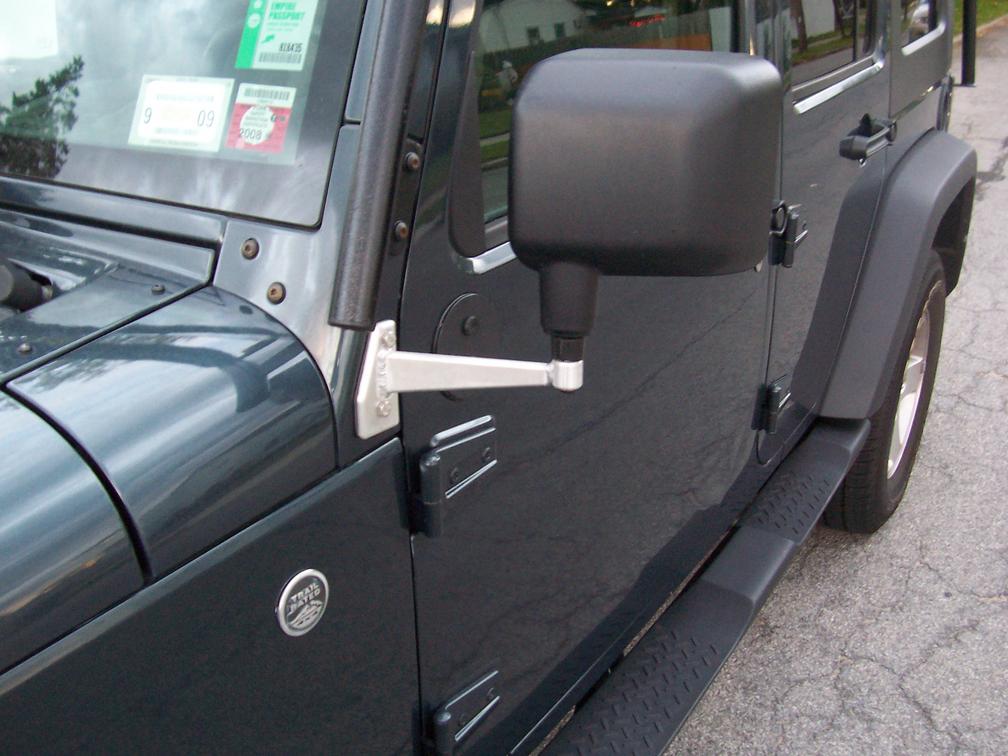

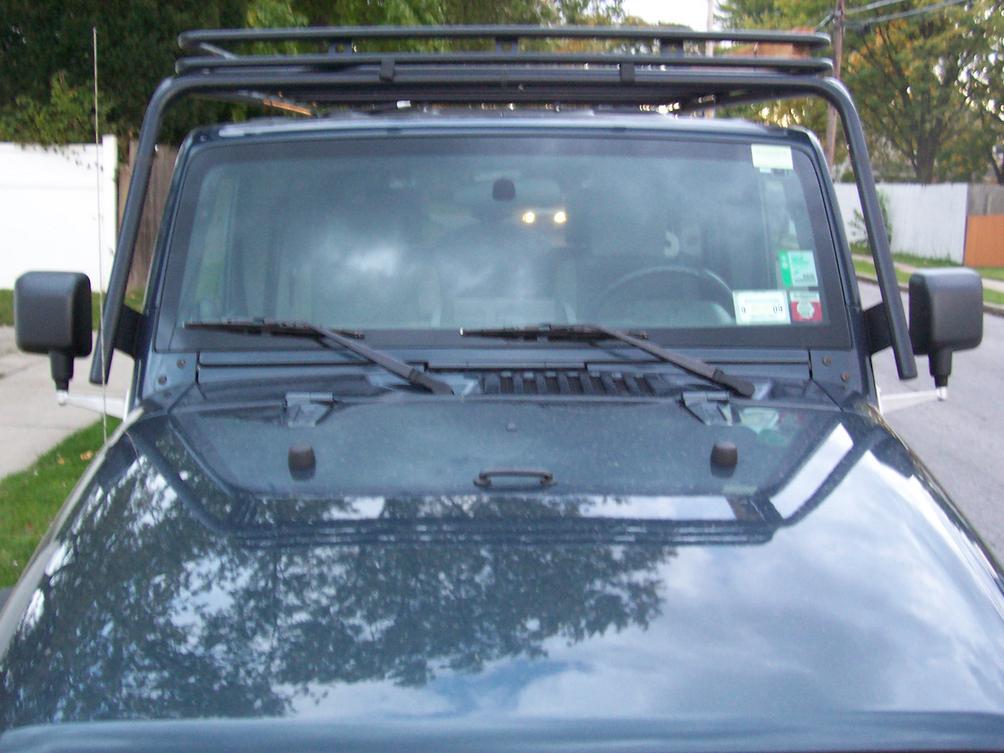

I decided to design my own brackets because I wanted something where the passenger side mirror would be fully usable with the doors on. In addition, I wanted to use the original mirrors. They're made out of 3/8" thick aluminum stock with a 1" dia. rod on the end. The full length of the bracket is 7 1/2". The arm starts at 1 1/2" and tapers to 3/4". The passenger side allows for full door opening without hitting the mirror. The driver's side door does contact with the mirror, however the retaining strap has been stretched which I think is allowing the door to open further than it should. Unfortunately I don't remember what degree angle the arm is off the base, but if anyone wants to know I'll measure it again. I am happy with the results, however they do shake a bit because of the arm length. When I get a chance I plan to replace the 1" rod on the end with a 1 1/2" piece and drill a 1 1/8" hole in it, so the mirror will sit in the rod instead of on top of it. I'm hoping this will help reduce some of the shaking.
Just for full disclosure, I did not do the welding. My uncle owns a machine shop so I had access to the materials and picked his brain on the design. He then had one of his guys weld them up.
