Wiring and l.o.c question 12'jk

Thread Tools

Old 02-15-2012, 10:03 AM
  #1
JK Enthusiast
Thread Starter

BIGNICK's Avatar

Join Date: Feb 2012
Location: new york
Posts: 342
Likes: 0
Received 0 Likes on 0 Posts
Default Wiring and l.o.c question 12'jk
I have a '12 jk w/ infinity system. Could anyone help me find the wire diagram for the infinity amp. Im going to bypass the infinity amp threw l.o.c's to my new 4-chnnl amp. Also im running a mono amp for my sub, should i have l.o.c on that also?

Thanks
Last edited by BIGNICK; 02-15-2012 at 10:23 AM.
BIGNICK is offline
Reply Like
Old 02-15-2012, 11:15 AM
  #2
JK Newbie

shulaj's Avatar

Join Date: Sep 2011
Location: Ottawa
Posts: 47
Likes: 0
Received 0 Likes on 0 Posts
Default
Have a look army thread here regarding this exact thing. Any ideas what the issue is? I have a 4 channel JL Audio AMP with 4 new JL Audio speakers and left the SUB stock.

http://www.youtube.com/watch?v=riblu...ature=youtu.be
shulaj is offline
Reply Like
Old 02-15-2012, 12:13 PM
  #3
JK Newbie

shulaj's Avatar

Join Date: Sep 2011
Location: Ottawa
Posts: 47
Likes: 0
Received 0 Likes on 0 Posts
Default Speaker Wires from Head Unit for Rears
Originally Posted by shulaj
Have a look army thread here regarding this exact thing. Any ideas what the issue is? I have a 4 channel JL Audio AMP with 4 new JL Audio speakers and left the SUB stock.

http://www.youtube.com/watch?v=riblu...ature=youtu.be
My stereo installer is telling me that a Jeep Dealer said that speaker wires from HEAD Unit for Rear Speakers in sound bar do NOT come from the head unit! Where do they come from. He said some "box" somewhere. Wonder if that is what got f'd up.
shulaj is offline
Reply Like
Old 02-15-2012, 12:39 PM
  #4
JK Freak

DKehler's Avatar

Join Date: Sep 2011
Location: Las Vegas, NV
Posts: 909
Received 6 Likes on 3 Posts
Default
Originally Posted by BIGNICK
I have a '12 jk w/ infinity system. Could anyone help me find the wire diagram for the infinity amp. Im going to bypass the infinity amp threw l.o.c's to my new 4-chnnl amp. Also im running a mono amp for my sub, should i have l.o.c on that also?

Thanks
Click image for larger version Name: Infinity wiring diagram.jpg Views: 104 Size: 38.9 KB ID: 278474 You can not simply bypass the infinity amp with a loc because it uses a can buss system to control volume, and other parameters. There are modules that will serve this function which are a little more pricey. You could run your loc for your 4 channel amp off the front speakers, but I think you would have to run off the dash speakers, and the tweeters. Not sure if you have the factory sub. I used a loc off my factory sub ( and kept it ) and it works great. The first loc I used would not work on the sub because of how much power it puts out. I bought a high power unit and its all good now.
DKehler is offline
Reply Like
Old 02-15-2012, 12:45 PM
  #5
JK Enthusiast
Thread Starter

BIGNICK's Avatar

Join Date: Feb 2012
Location: new york
Posts: 342
Likes: 0
Received 0 Likes on 0 Posts
Default
Is the problem when you fade in and fade out from what i could tell from the video? Did you just swap the jl speakers out with the stock speakers and keep the factory wires?
BIGNICK is offline
Reply Like
Old 02-15-2012, 12:50 PM
  #6
JK Enthusiast
Thread Starter

BIGNICK's Avatar

Join Date: Feb 2012
Location: new york
Posts: 342
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by dkehler
[attach=config]278474[/attach] you can not simply bypass the infinity amp with a loc because it uses a can buss system to control volume, and other parameters. There are modules that will serve this function which are a little more pricey. You could run your loc for your 4 channel amp off the front speakers, but i think you would have to run off the dash speakers, and the tweeters. Not sure if you have the factory sub. I used a loc off my factory sub ( and kept it ) and it works great. The first loc i used would not work on the sub because of how much power it puts out. I bought a high power unit and its all good now.
yea i would have 3 loc's. 1 for the front, rear, and sub, and just cut and splice those wires to my new amp leaving any other wires not pertaining to the speakers and sub alone. If that makes sense. and ill be swapping out all speakers including sub
Last edited by BIGNICK; 02-15-2012 at 12:52 PM.
BIGNICK is offline
Reply Like
Old 02-15-2012, 01:02 PM
  #7
JK Newbie

shulaj's Avatar

Join Date: Sep 2011
Location: Ottawa
Posts: 47
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by BIGNICK
Is the problem when you fade in and fade out from what i could tell from the video? Did you just swap the jl speakers out with the stock speakers and keep the factory wires?

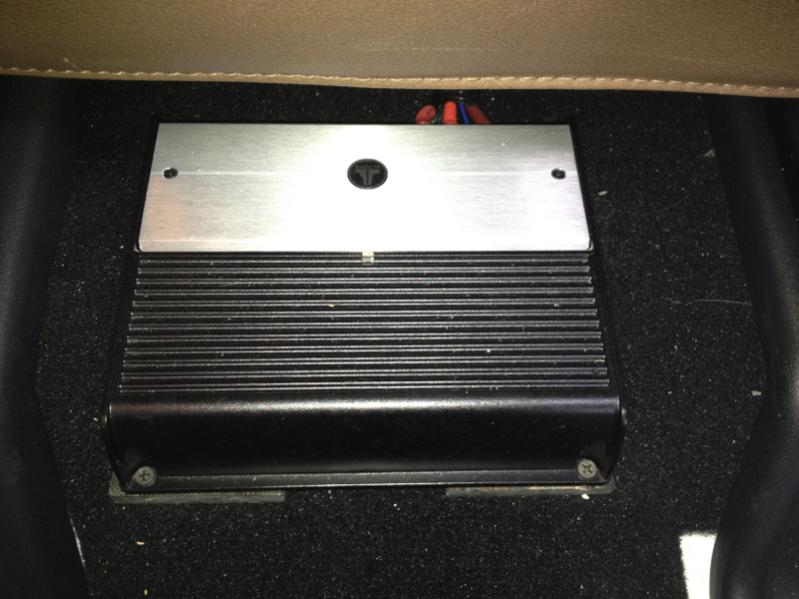

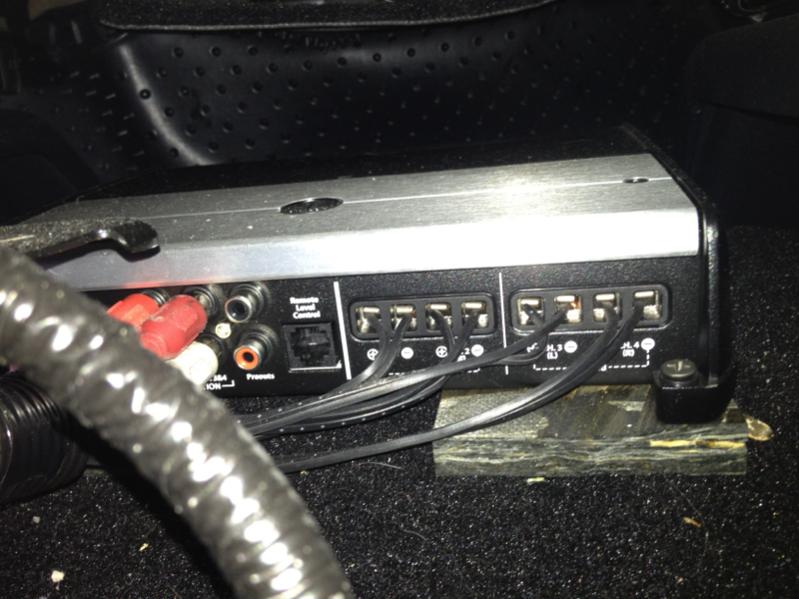

Well the AMP is now under the passenger seat so I suspect the installer ran NEW wires. I have pictures of it here. Click image for larger version Name: image-1860513424.jpg Views: 67 Size: 56.4 KB ID: 278490Click image for larger version Name: image-3243954975.jpg Views: 67 Size: 63.9 KB ID: 278491
shulaj is offline
Reply Like

Trending Topics

Old 02-15-2012, 01:12 PM
  #8
JK Enthusiast
Thread Starter

BIGNICK's Avatar

Join Date: Feb 2012
Location: new york
Posts: 342
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by shulaj
Well the AMP is now under the passenger seat so I suspect the installer ran NEW wires. I have pictures of it here. Attachment 278490Attachment 278491
you might have luck installing a line output converters. ive been reading up on them and there used when keeping your factory h/u and help equalizing the factory settings such as the volume,trebble, etc especially with aftermarket amps and speakers to get to there fullest potential of sound. im going to install them in my jk when i swap out my system soon
