Rigid back up light install question
01-05-2013, 10:22 AM
#32
JK Junkie
I appreciate all the input on wiring. I'm the furthest thing from an electrician, so I was just going to wire straight to the battery with the provided harness ( lengthening where needed) to avoid issues with the can-bus. I only want it to work off the switch so this should be fine right?
01-05-2013, 01:52 PM
#33
JK Enthusiast
Thread Starter
Join Date: May 2011
Location: Southwest PA
Posts: 402
Likes: 0
Received 0 Likes
on
0 Posts
That's what I did for my hella lights in the front. These should turn night into day so I hope I notice if I accidentally turn them on.
01-05-2013, 01:53 PM
#34
JK Enthusiast
Thread Starter
Join Date: May 2011
Location: Southwest PA
Posts: 402
Likes: 0
Received 0 Likes
on
0 Posts
01-05-2013, 05:05 PM
#36
JK Enthusiast
Well I enjoyed the electrical discussion.
Back EMF can be 200+ volts. I use a diode in parallel to 85 & 86 to allow the energy to dissipate.
I also just made a wiring diagram for a lighting system I want to install and use two interposing relays for a interior light to work with a switch and dome light separately. I also incorporated a single pole double throw switch to control some back-up lamps. One position for on, one for off and another for on with reverse. I also could have added the 2 relays to this configuration instead of the SPDT switch.
OH... and I had not yet scoped out all my wiring routes, so this thread was an interest to me of some different ways to get to the back.
Back EMF can be 200+ volts. I use a diode in parallel to 85 & 86 to allow the energy to dissipate.
I also just made a wiring diagram for a lighting system I want to install and use two interposing relays for a interior light to work with a switch and dome light separately. I also incorporated a single pole double throw switch to control some back-up lamps. One position for on, one for off and another for on with reverse. I also could have added the 2 relays to this configuration instead of the SPDT switch.
OH... and I had not yet scoped out all my wiring routes, so this thread was an interest to me of some different ways to get to the back.
Last edited by kaffeene; 01-06-2013 at 01:13 PM.
01-06-2013, 01:31 PM
#37
JK Freak
Jk- Ford: thank you taking the time to educate me. I totally get what you're saying. I've never thought about the two systems that way, but it makes total sense. I think I'll stick with the less complicated, single relay setup, but I see where your system provides more protection. In the end, I'm using a three way switch, so I'm not even using a diode, so I think my two systems are totally separate anyway.
Btw, I did back up last night with my enclosed trailer. Having the option to turn these off while backing that trailer is critical. Mine are mounted low in the bumper, but the glare back at me while backing was blinding. Just my two cents, but you trailer guys might consider a three way switch to have the ability to kill these when necessary. Especially if you're mounting them above you spare.
Btw, I did back up last night with my enclosed trailer. Having the option to turn these off while backing that trailer is critical. Mine are mounted low in the bumper, but the glare back at me while backing was blinding. Just my two cents, but you trailer guys might consider a three way switch to have the ability to kill these when necessary. Especially if you're mounting them above you spare.
01-06-2013, 01:38 PM
#38
JK Enthusiast

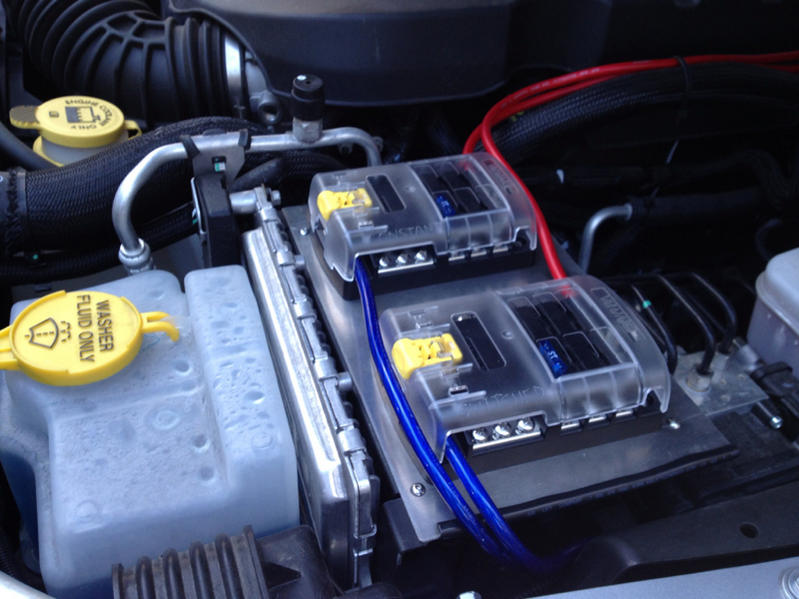

Wow, and I thought I knew wiring. Show me the schematic. With the little room under the hood, where do you have 6 relays? I am running two blue sea fuse boxes on an sPOD mount. See pic. One blue sea is constant, one is relay switched. I also have a second relay for my D2 driving lights, and will have a third relay for the D2 diffused reverse lights. All three are next to the battery.
Attachment 405643
Attachment 405643
