Fuse Box Pics for the JK 08 4 DOOR
11-21-2007, 05:32 PM
#1
JK Newbie
Thread Starter
Join Date: Nov 2007
Location: Arlington Texas
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Fuse Box Pics for the JK 08 4 DOOR

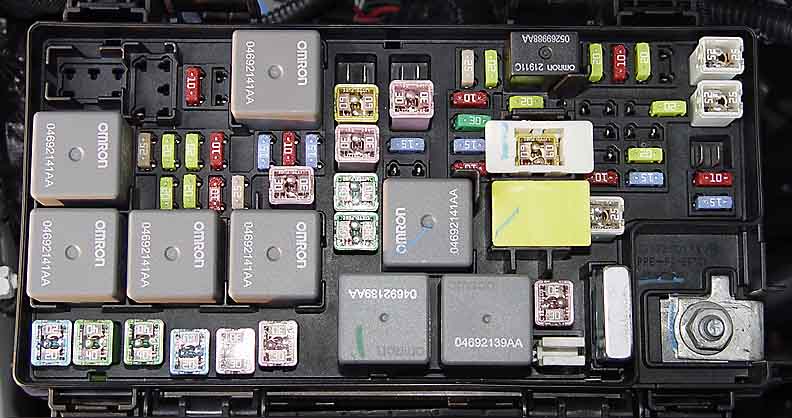

Fuse Box Pics for the JK 08 JEEP UNLIMITED 4 DOOR RUBICON
I noticed that the owner’s manual did not include this so I took these pics
And thought I would share them
I noticed that the owner’s manual did not include this so I took these pics
And thought I would share them
Today, 07:29 AM
#3
JK Newbie
Join Date: Feb 2017
Location: Fullerton, CA
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
The “cradle” is the white rectangle just above the yellow rectangle which is a fixed piece that is a fixed platform that aids in pulling up the white cradle to pull the fuse. When lifted the cradle retains the fuse in the pulled position until it is pushed back down to resume the normal operation. The fuse controls many of the aux (radio, door locks, courtesy lights, …) that are a parasitic draw on the battery while towing.
I’m looking for a safe way to remove the white cradle so that I can see what is keeping the fuse for being re-seated as it always has when pressed back down.
I’m looking for a safe way to remove the white cradle so that I can see what is keeping the fuse for being re-seated as it always has when pressed back down.
