I have a 2013, manual, that has shut down on the highway three times. After it sits for 20-25 minutes, it starts back up, and runs perfectly fine. I'm thinking it could be the fuel pump relay switch, however I can't figure out where it is located in the fuse box. Can someone please help? Thanks.

ronjenx

The fuel pump relay is deep inside the fuse box, soldered to one of the circuit boards.

What troubleshooting have you done that would lead you to suspect the fuel pump relay?

Old Salt

Thanks, ronjenx, based on it shutting down, occasional not starting, and occasional burn '13 has a plug in relay, and through deduction I found its location. Will see if this fixes problem this weekend, it'll get a bunch of miles.

ronjenx

Where is the relay you found?

Old Salt

K4 in the '13 box

ronjenx

I guess I misunderstood what you were looking for.
I thought you wanted to find the fuel pump relay.

stephenspannn27

K4 is a removable relay for the fuel pump on the 2012

ronjenx

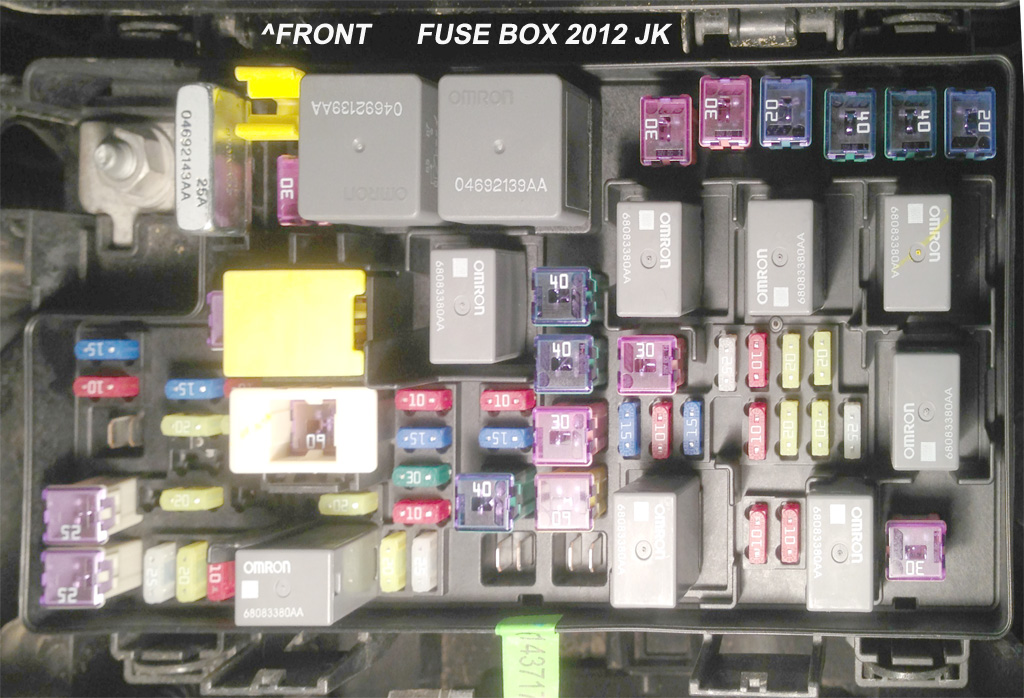

K4 is the Run/Start relay. It supplies power to the items that need power during run/start. Included in those items is the fuel pump relay inside the TIPM on the circuit board, as pictured above.

stephenspannn27

I understand now, thank you for the info. You seem very knowledgeable, could you took a look at this thread here and provide some feedback?
