Backup camera wiring question
#1
JK Enthusiast
Thread Starter
Backup camera wiring question
I have looked through as many backup camera posts as I can, but I still have some remaining questions. I am still trying to decide whether I want the camera to run when I turn the lights on or when I put it into reverse. The camera is one that mounts around the license plate so I am only running the wires to the tail lights. For the reverse only option there is a wire that is white with a green stripe for the hot, but there are two blacks. Which one is the negative to tie into?
For the Option to tie into the lights, which one is the appropriate hot wire? the white with yellow or the white with purple?
I am primarily interested in these two wiring points because they are right there next to the license plate. I am open to other places to tie in if they are easy to get to. Thanks for the help.
For the Option to tie into the lights, which one is the appropriate hot wire? the white with yellow or the white with purple?
I am primarily interested in these two wiring points because they are right there next to the license plate. I am open to other places to tie in if they are easy to get to. Thanks for the help.
#4
JK Enthusiast
Thread Starter
The reason I want it to come on when I turn on my lights is because I can't see out the back window. I am essentially trying to create a rear view mirror (display fits over the mirror) with the camera. I am about 90% towards it coming on with the lights so I can get the wife off of my back about the visibility. I don't have the camera yet which may sway me one way or another, which is why I am asking about both options. Thanks.
Last edited by JDaPP; 06-10-2014 at 01:10 PM.
#6
JK Enthusiast
Thread Starter

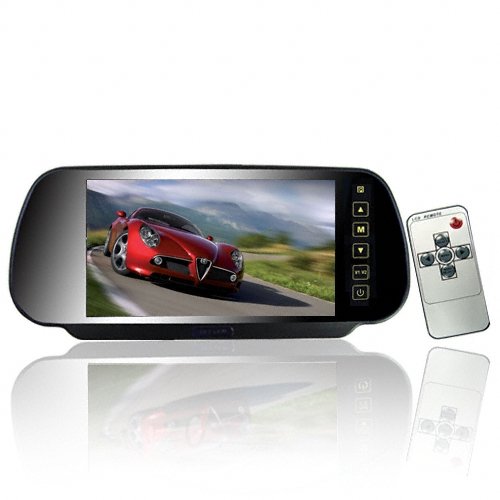

Yep, the display I ordered looks like this:
In theory it should be similar to looking in the mirror. If I wire it to just reverse lights, display turns off when not used. Other advantage of wiring to lights is that I can use it to check on my trailer. Will really be a decision I make once I get the camera which is why I want to be prepared for either contingency.
In theory it should be similar to looking in the mirror. If I wire it to just reverse lights, display turns off when not used. Other advantage of wiring to lights is that I can use it to check on my trailer. Will really be a decision I make once I get the camera which is why I want to be prepared for either contingency.
#7
If you cant see out the rear because of the rear headrests, Take them off. Having the rear view camera monitor on when lights are on may be very distracting. Fix you rear view mirrors to see behind you. As far as seeing your trailer, is that for backing up to get it on the hitch ball? If so, use a driveway marker as a centering/aiming point. As far as identifying the correct wires in the rear, use a meter to see what's hot. The body is ground and should work just fine for any negative connections. Again a meter (or test light) will tell. I connected mine to the left rear backup lamp circuit in the lamp housing. Good luck
Trending Topics
#8
JK Enthusiast
Thread Starter
Headrests are down, doesn't really help, issue is tire mainly. For the trailer, it is more just to check on it occasionally. I have had enough weird things (straps breaking, things dragging, etc) that I just like checking on it occasionally. Check on the meter, would still like verification of the light wires if someone knows just to give me a warm fuzzy. Appreciate the info on the backup lamp circuit, I really appreciate it.
#9
JK Freak
Join Date: Apr 2011
Location: Lakeland, Florida
Posts: 719
Likes: 0
Received 0 Likes
on
0 Posts

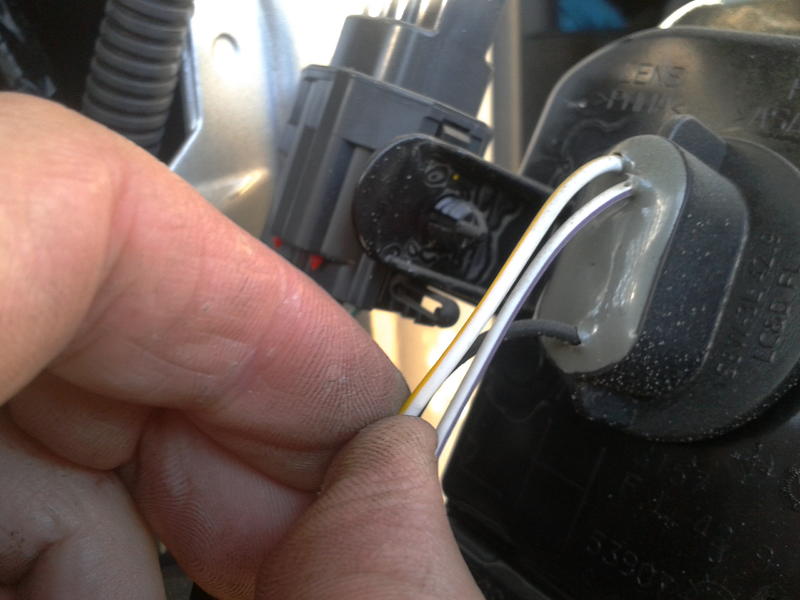

Here's what I found for wire colors on my 2010 JKUS when adding a spare mounted 3rd brake light and backup camera. The license plate light wires are for the tail lights:
https://www.jk-forum.com/forums/jk-e...-light-272742/
https://www.jk-forum.com/forums/jk-e...-light-272742/
